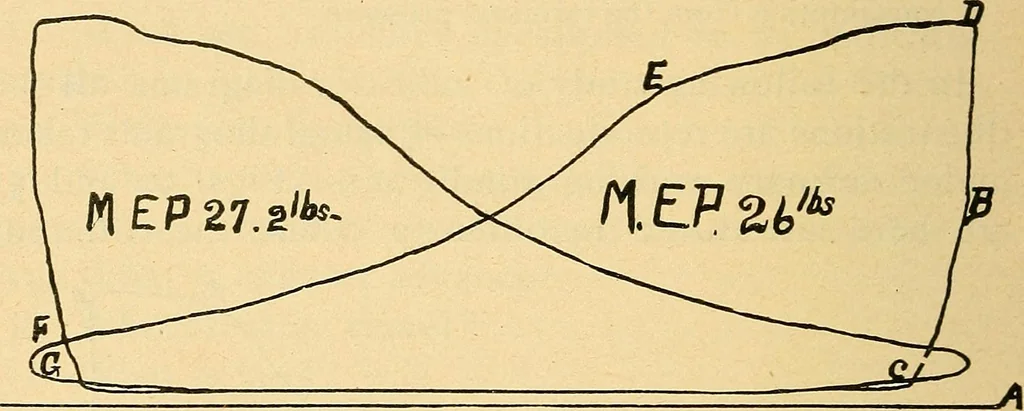

ular to the atmosphericline A, shows sufficient lead and ample port area.From D to E is the steam line. Cut off occurs at E,and from E to F is the expansion curve. At F thepoint of release is quite sharply defined, as it shouldbe. From F to G is the exhaust line,, and from G to Cthe line of back… … FIGURE 51. simple condensing engine and the nearness of theback pressure line to the line of perfect vacuum Vshows that an excellent vacuum was maintained in thecondenser. Fig. 51 is from a Buckeye automatic cut off enginehaving a shaft governor and what is termed a ridingcut off, that is the cut…
