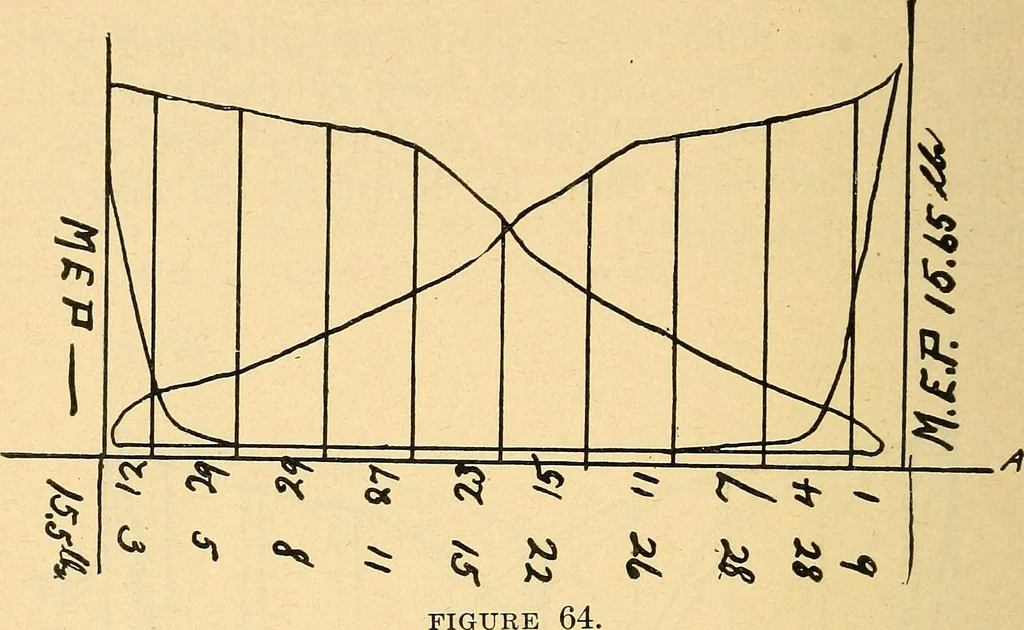

4 was secured by quick manipulation of theinstrument when it was known that the load was to besteady for a few seconds. Fig. 65 is from an Atlas single valve automatic cutoff engine with shaft governor. This engine was16 x 24 in., running at 105 R. P. M., and at the timethe diagram was taken the… … actuated by a shaft governor, the degree of compres-sion varies with the point of cut off in the single valveengine, the compression being higher with an early
