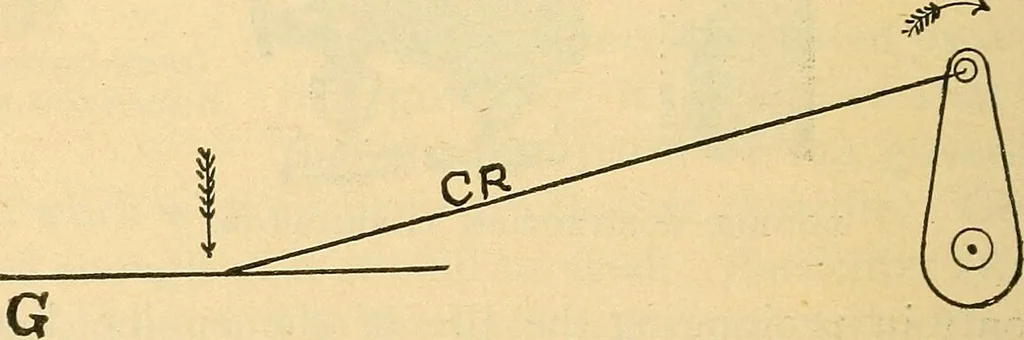

f^s* FIGURE 94. torn guides of horizontal engines, especially if theengine runs over, as illustrated by Figs. 94 and 95,where it will be seen that in addition to the weight ofthe crosshead, the thrust or pressure consequent uponthe pull, Fig. 94, and push, Fig, 95, also comes uponthe bottom guide… … figure 95. strokes; whereas with an engine running under, thethrust is just in the opposite direction, and the pres-sure comes upon the top guide. The best method of lubricating the lower guide of ahorizontal engine is to drill through from the under- ENGINE OPERATION 279 side at a point near the…
