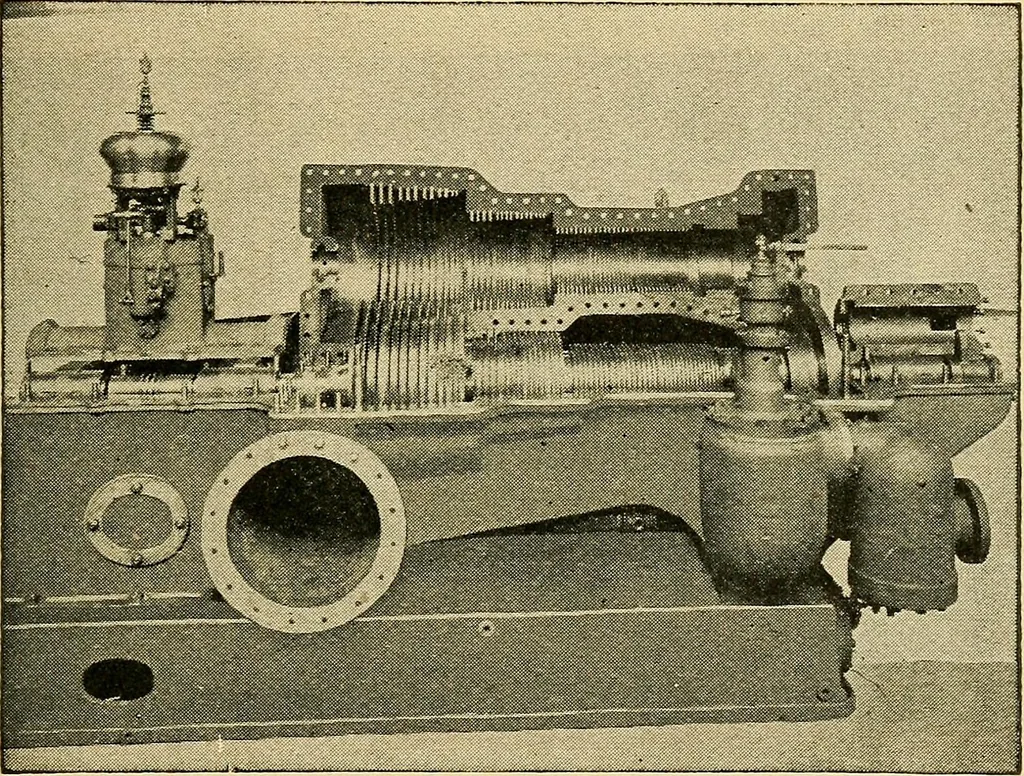

INGHOUSE-PARSONS STEAM-TURBINE 361 varies from about 750 R. P. M. for a 5,000 K. W.machine to 3,600 R. P. M. for a 400 K. W. turbine. Fig. 129 is a general view of a 400 K. W. turbinegenerator unit. Fig. 130 shows a 600 H. P. machinewith the upper half of the cylinder, or stator as it istermed,… … figure 130. the third and last group of blades. This arrange-ment may be likened in some measure to the triplecompound reciprocating engine. By reference to Fig. 130 it will be seen thatt theinside of the cylinder is studded with rows of smallstationary blades and that the rotor or revolving partof…
