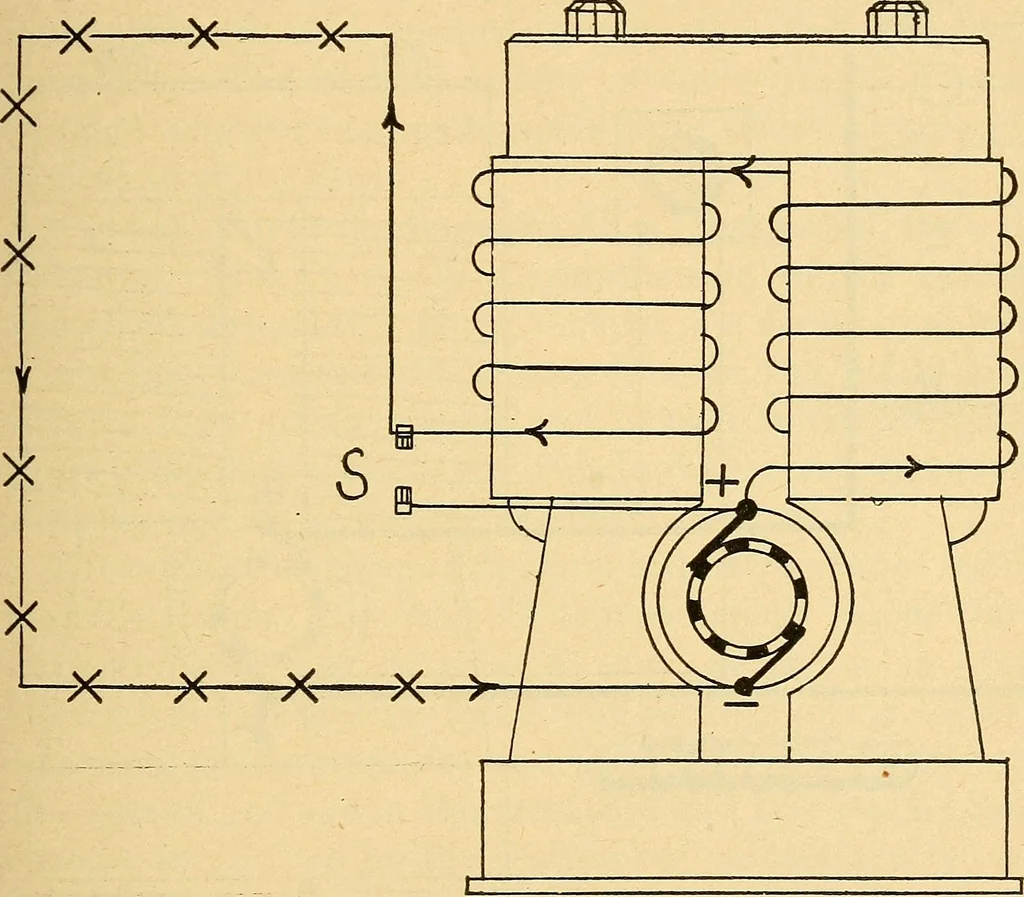

elds. Dynamos. Having so far considered the generationof currents in dynamos, we may now consider differenttypes of dynamos and their uses. Fig. 19 shows adia- ELECTRICITY FOR ENGINEERS 45 gram of the wires and connections of a series dynamo.The principal use of this dynamo at present is in… … figure 19. decreases, the current remaining constant at about 10amperes. By reference to the figure, we can trace thecurrent as it flows from the 4- brush, in the direction ofthe arrows, around both field magnets and through thelamps, returning to the - brush on the dynamo. Inour elementary sketch…
