Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 322

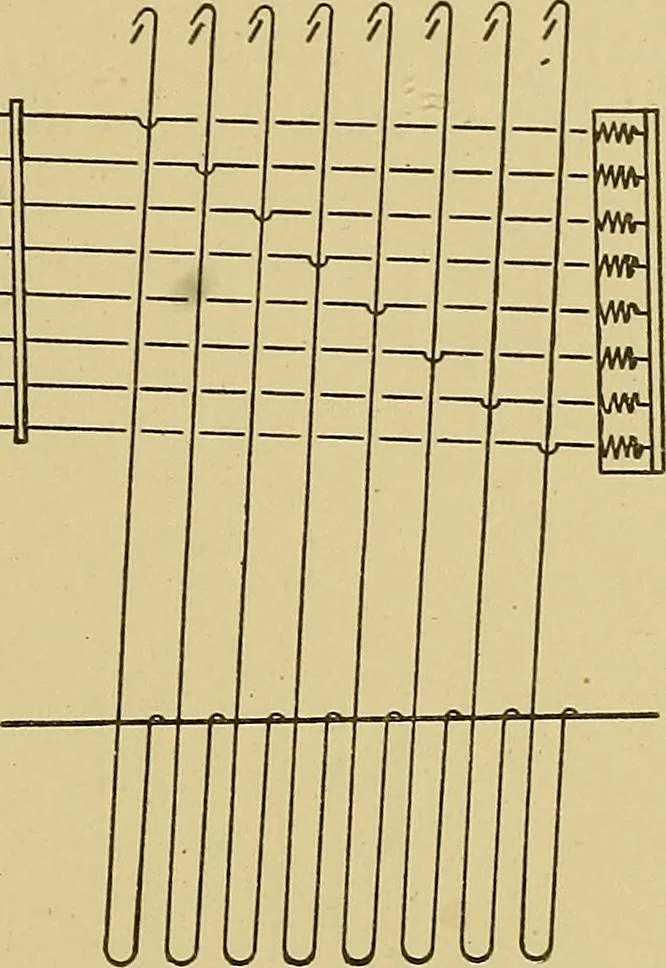

can be replaced more readily in a spring box thun if it were onthe end of a needle. 288 JACQUAKD MACHINES 11 There is, however, one disadvantage in using the spring box,for when the hole, through which the bolt, Mhich holds the boxin position, passes, has become worn, some of the needles will… … Fig. 12. Hooks Out of Perpendicular with Needles. When placi/ig hooks and needles in a machine, one row ofeight needles is placed in first; that is, the needles are passedthrough the bars that extend across the machine from side to side,and into the holes in the needle board. On the bars the loop…
