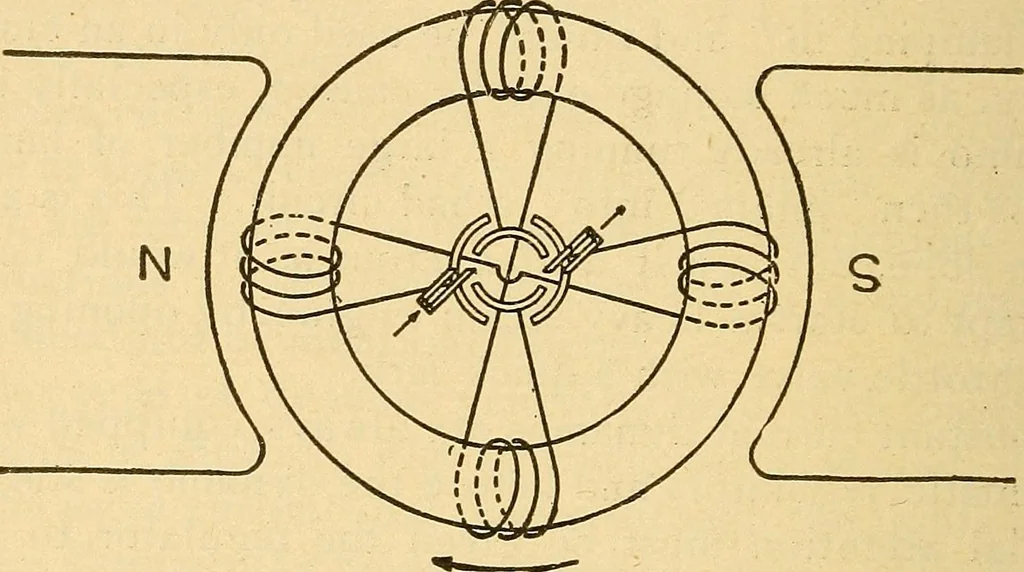

LECTRICITY FOR ENGINEERS fundamental principle of which is illustrated in Fig.41. Two pairs of coils, placed at right angles on aniron core, are rotated in a magnetic field. The hori-zontal coils represented in the diagram are producingtheir maximum electromotive force, while the pair ofcoils at… … FIGURE 41. coils. The other coils are open circuited or com-pletely cut out of the circuit. Such a machine will generate current, continuous indirection, but fluctuating considerably in amount.These fluctuations will be diminished by the additionof more coils to the armature. Fig. 42 shows the…
