Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 137

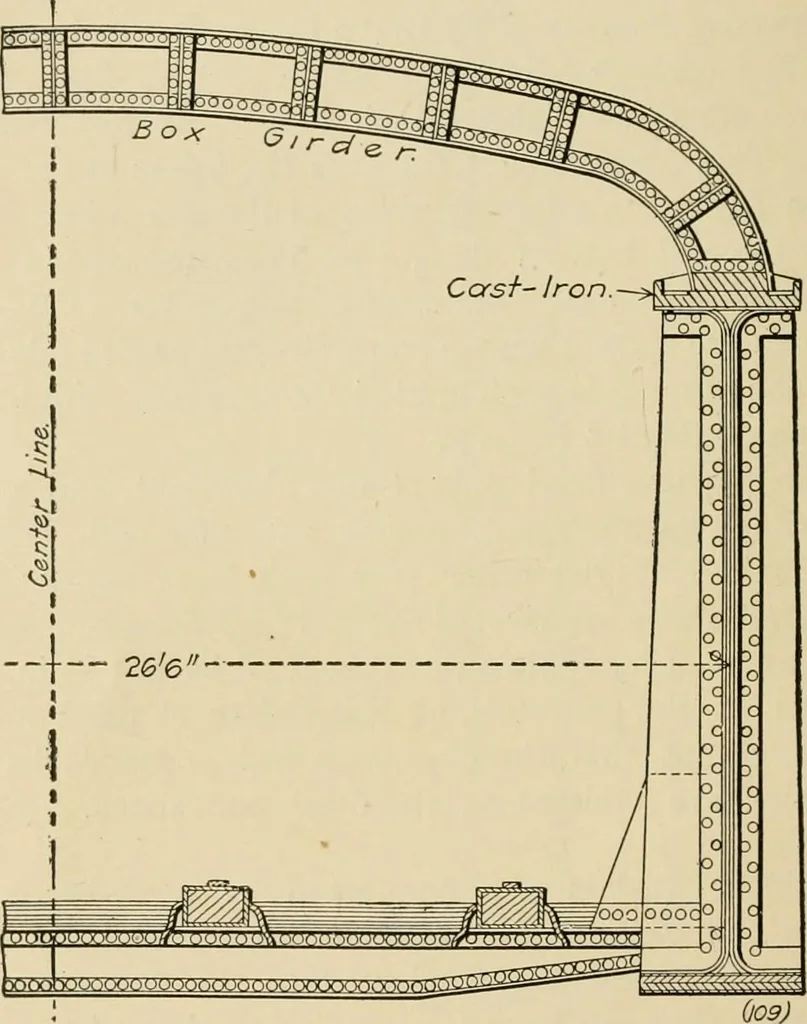

. Sole plates f in. thick and 19 in. wide areriveted to the shore ends of the lower flanges, and project about4in. beyond them on each edge to receive i^ in, wedge anchor 120 BRIDGE CONSTRUCTION bolts through slotted holes 2 in. long. The plates are planedto a bevel of I in. in their length to… … 1 n+ernne.clia+e Half Cross-Sec+ion. Details of Girder, Floor, and Lateral Strut. — Bengal Bridge. girders are made with single 32 x -^Q-^n. web plates and6 X 6 y. l^-in. flange angles, reinforced by double thicknessesof 14-in. cover plates. The angles have a double row of rivetsthrough their…
Bridges
