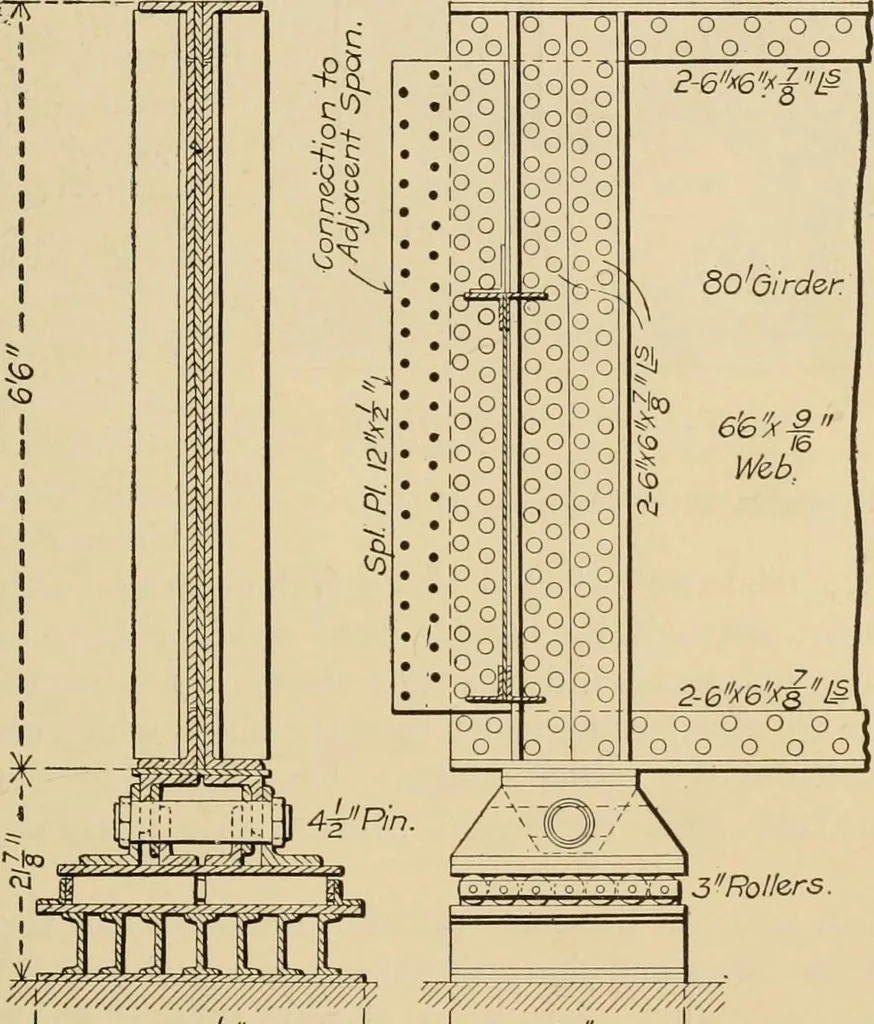

n except that their Pin bearings in riveted expansion shoes i8l Vertical webs are made with two angles, back to back and farenough apart to receive between their vertical legs those of theshoes, thus practically eliminating bending stress in the pin.The shoe angles and the inner angles of the… … 33-^- >l t- - - 24-- - >1 City Island Highway Bridge. plates which just clear longitudinal angles riveted to the rollerbed. This is a grillage made with beams and channels rivetedbetween 24 X 33|-in. top and bottom cover plates, which distrib-ute the girder loads over an increased surface of…
