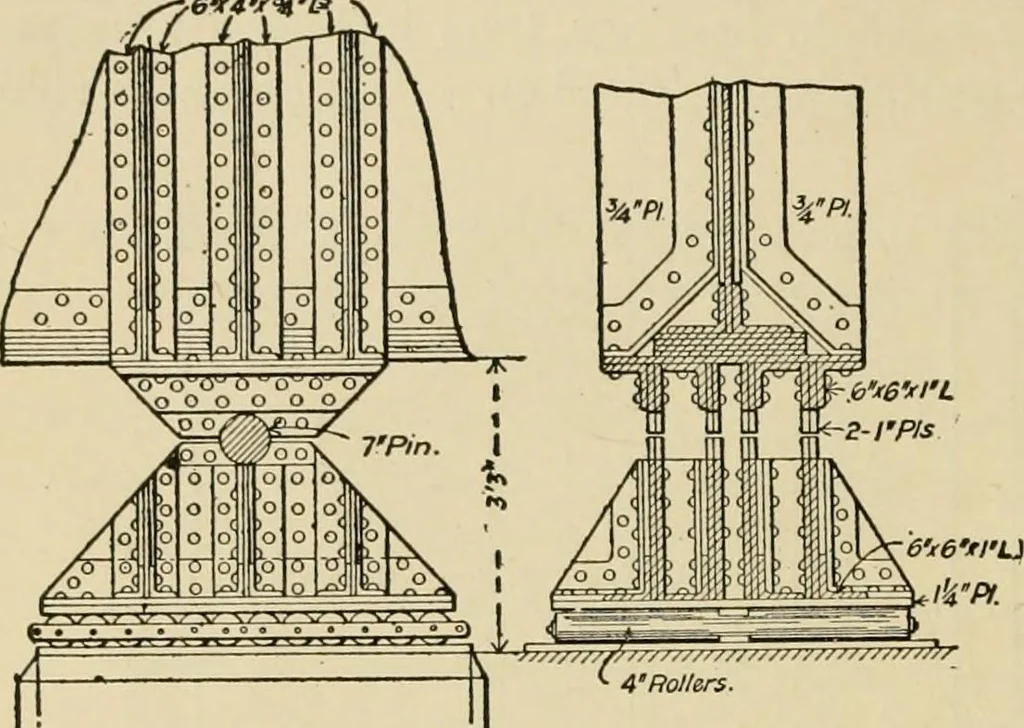

in corresponding pedestals with extended bases whichare seated on expansion rollers. The horizontal plates ofthe shoes are several inches wider than the bottom flanges ofthe girders, and their projecting edges are stiffened by vertical transverse platesriveted to the bentlower ends of… … Detail of Shooand Pedestal. Riverside Drive Highway Bridge. road have triple-web riveted shoes and pedestals with the re-inforcement plates of the outside webs overlapping to lock themtogether. The shoes and pedestals are the same length, but thepedestals are about 12 in. wider than the shoes which…
