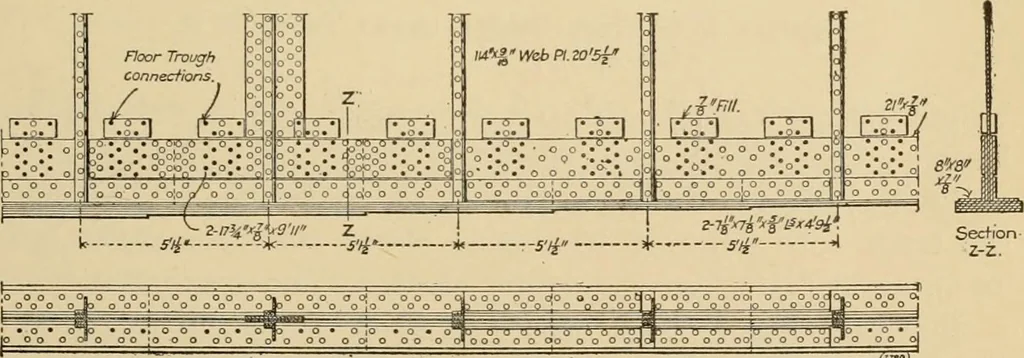

51II Grand Trunk R. R. Bridge. cover plates are each made in two pieces with their joints splicedby the overlapping ends of the outer center cover plate. Theweb plates are spliced with pairs of cover plates extending onlybetween the flanges the portion of the web included in theflanges not being… … insr Worden Bridge, C. C. C. & St. L. R. R. Warden. — The 105-ft. double-track through span of theChicago, Cleveland, Cincinnati & St. Louis Railroad, near Wor-den, Hi., has plate girders 9 ft. 6i in. deep, back to back offlange angles. Each web has five shop-riveted splices made 220 BRIDGE…
