Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 293

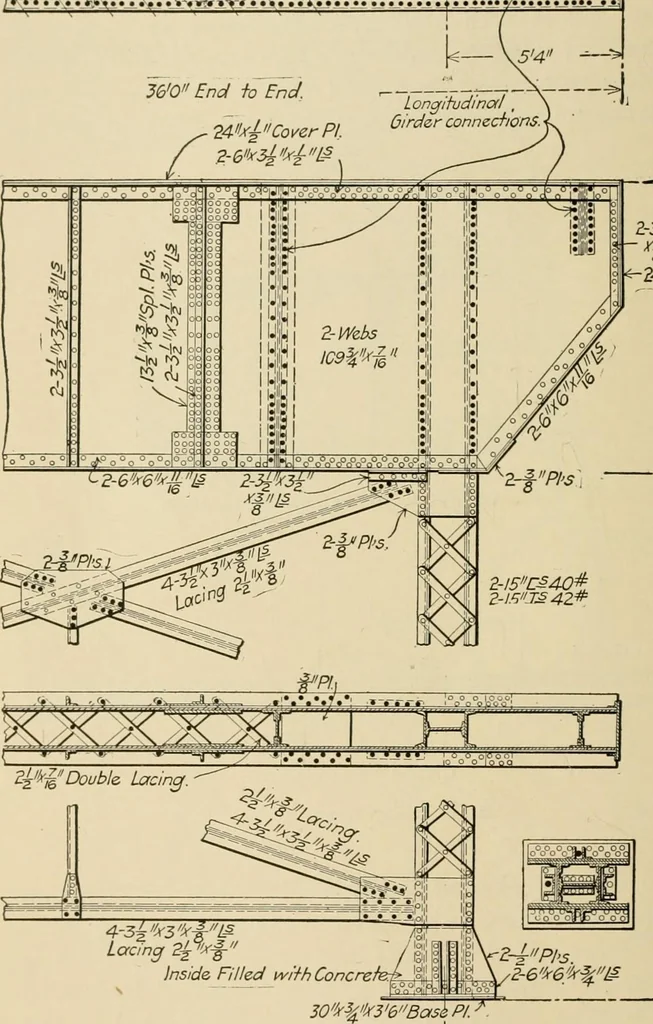

supported by specialsingle-bent trestles with their vertical posts connected at thetop by heavy transverse girders. At the abutments and at thepiers of the 225-ft. span the tracks are carried on deck spans,but in the middle of each approach they are carried on throughspans with solid trough floors… … ^24.xfPI. 240C. fo C of Columns >| Ha/f Eleva+lon of Ben+ EB3, Transverse Girder. 3^ S .-^ APPROACHES 277
Bridges
