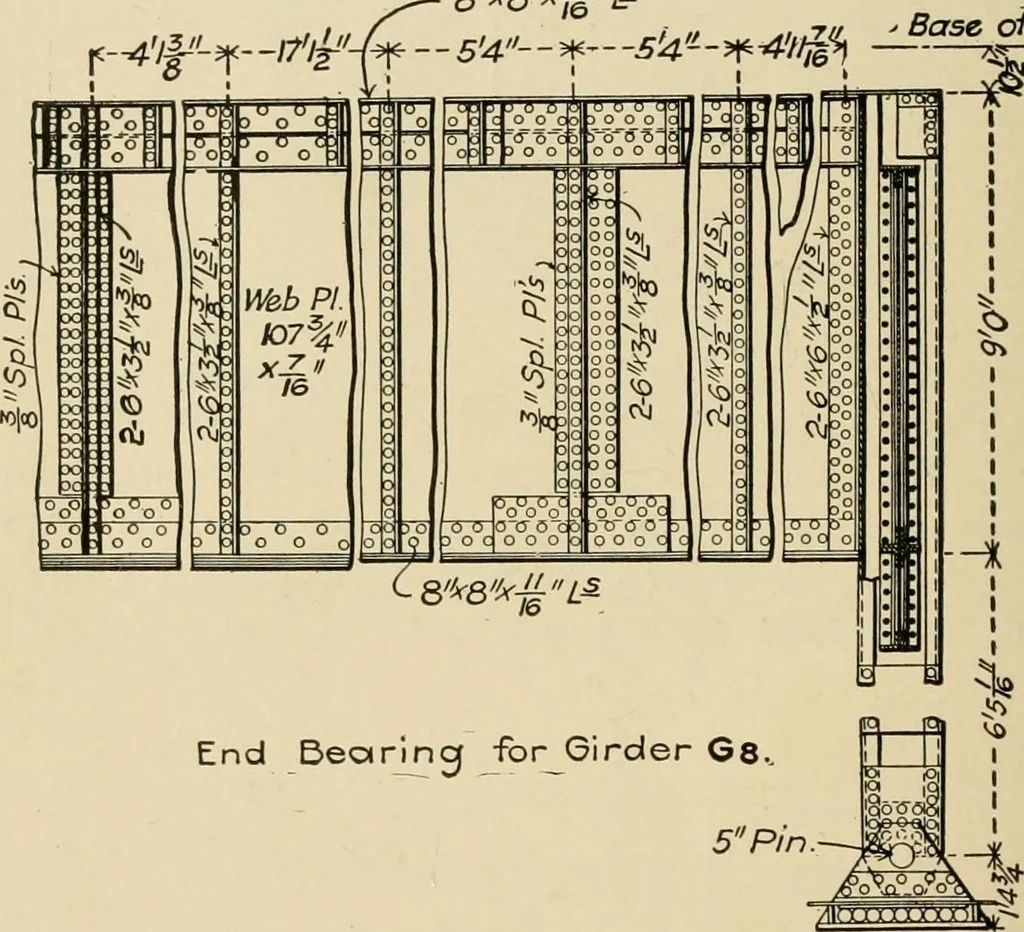

seats at the extremities of the upper flange. Bent Bihas a box girder shipped complete. Its webs are field-riveted tothe flanges of the columns, which extend through it to the topflange, as in the case of the other bents. The columns, how-ever, have heavy double-web brackets shop-riveted across… … End Bearing forOirder Gs. 5 Pin. Girder with Rocker Bent. Pier 4.. The through span girders are supported on the tops of the col-umns, and the deck span girders are web-connected to the trans-verse girder at the points stiffened by the diaphragms. Thereis no material difference, except in…
