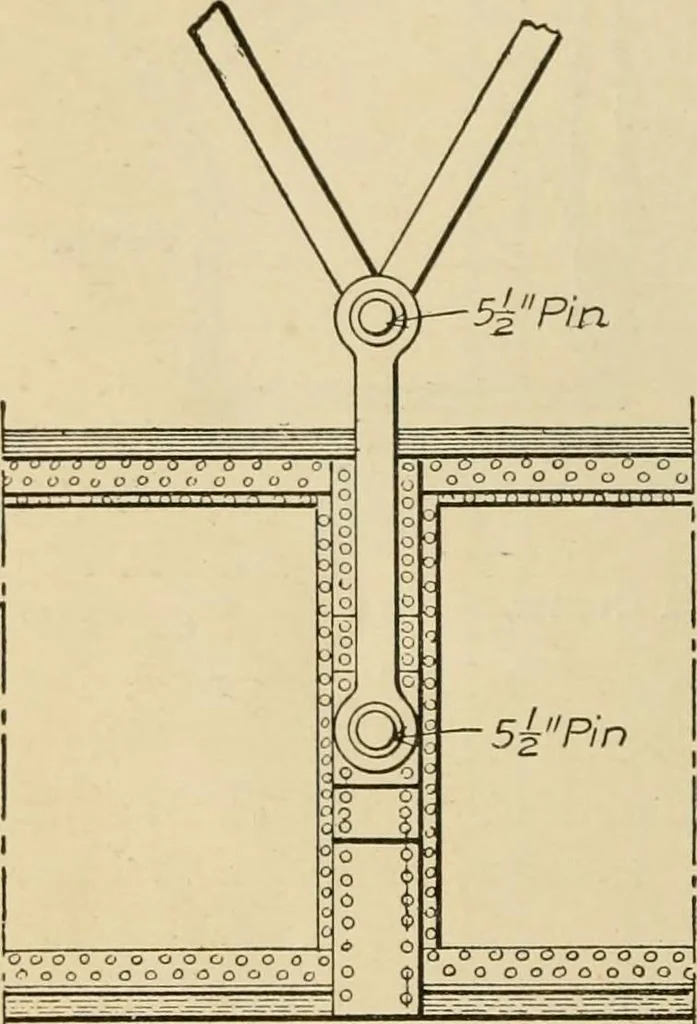

. in themiddle and field-riveted at the ends, where it extends a httlepast the 72ft- splice angles and laps over the end sections ofthe girder. At each end the girder has a bottom flange bearing5 ft. long on a stiffened plate diaphragm 6 ft. high, in the planeof the web, which serves as a pedestal… … 5ide View a+ Arch BraceSuspension of Continuous Spans. EXAMPLES OF PLATE GIRDER CONSTRUCTION ^,6?
