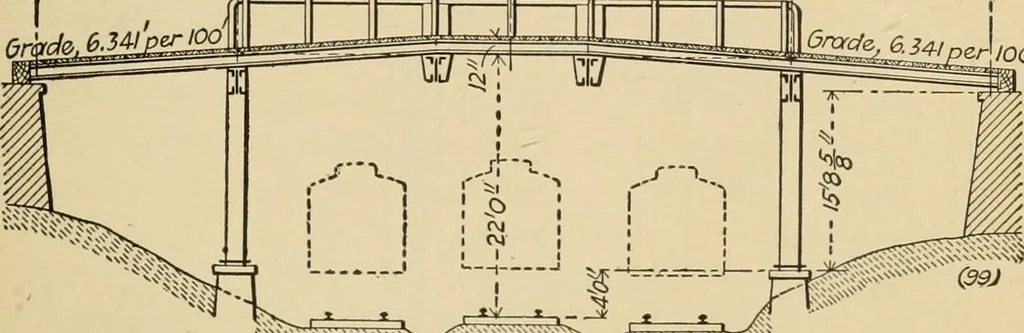

ine of the street and at anangle of 30 degrees with the directions of the tracks. Theyare 52 ft. long, 3 ft. wide, and 3^ ft. deep, with an inverted U-shape cross-section. The ^-in. web plates are 24 in. apart andare connected by eight vertical transverse diaphragm plates.The lower flanges are each… … ^^^>S^^^^^^^..^..y^^^Siit^Z..,^(^^;^^^^ivM Side Elevoition.Overhead Span with Maximum Clearance between Floorbeams. which are riveted two 25-in. outside and two 22-in. and one 12-in. inside cover reinforcement plates. The ends are notched togive seats over the column tops for the sidewalk…
