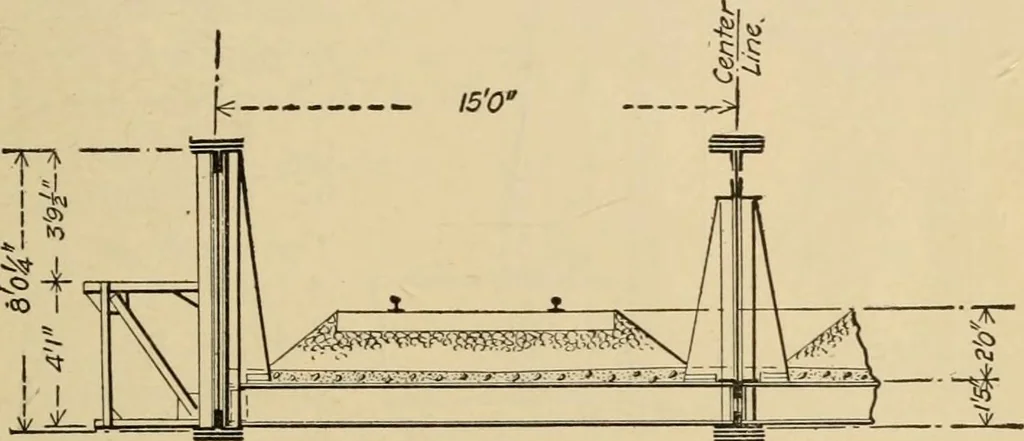

the Wabash Railroad at Forest Park, St. Louis,is a two-track structure of yi^ ft. clear span. It has threethrough plate girders 96 in. deep back to back of angles, 80 ft.long over all, and 15 ft. apart on centers. It has a solid floor ofreinforced concrete and I-beams, and carries a 3-ft,… … Half Cross-Secfton- Floor System and Tranverse Bracing. The girders have the upper corners rounded to a 30-in. radiusaround which the end vertical web-stiffener angles, of the samesize as the flange angles, are curved and are spliced, about 5 ft.from the ends, to the flange angles with short pairs…
