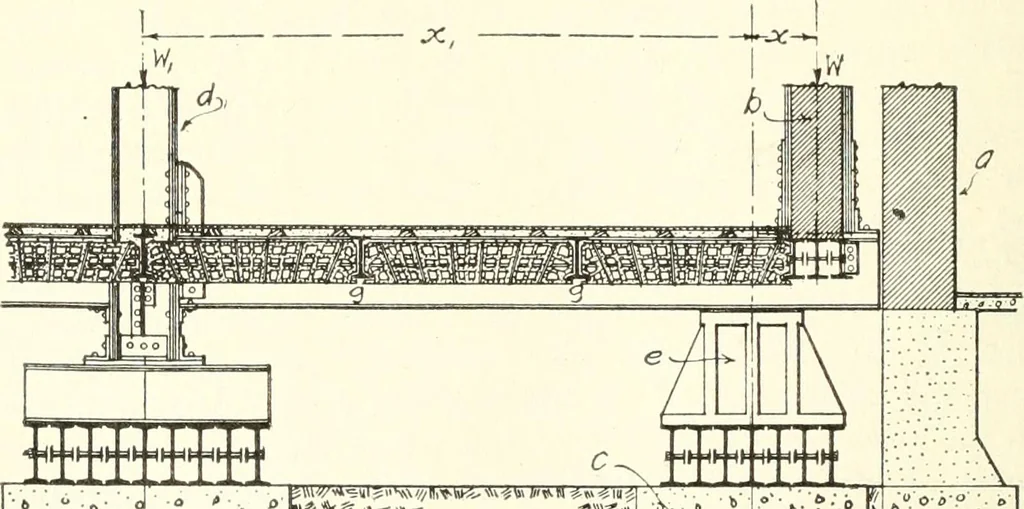

loads ofall the stories between columns b and d, is concentrated on the over-hanging end of the cantilever, there is a lifting tendency on thecolumn d; so that, for stability of construction, the product of theforce represented bv the weight W by its lever arm .r must equalthe product of the force… … Fig. 51. Examples of Cantilever Foundation Construction. Loss of Head-room. CAXT/LEJIIR l-OL\\I).rJ/0.\ COX STRUCT/OX. ^5 and that the weight is distributed over them by means of the grill-age beams. Lsuall\- a heavy cast-iron or structural steel bed-plateor bearing-plate transmits the load at the…
