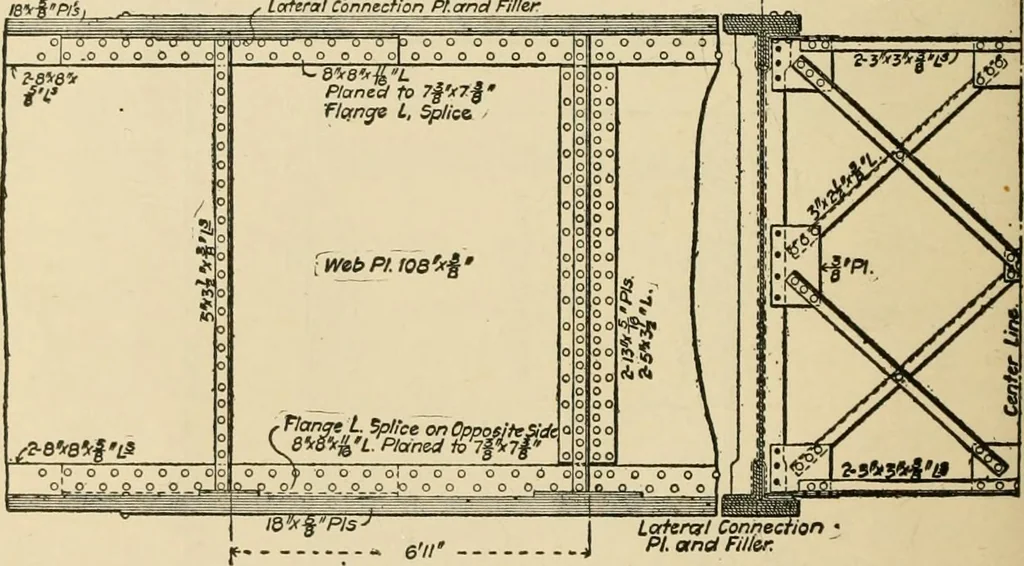

h ft. long, planed down to 7! x 7I in. wide. The girders are divided into panels of a uniform length of6 ft. II in., except at the ends, where they are shorter, by pairsof 5 X 3j-in. vertical angles, which are crimped, except at thesplices and at the ends. At the ends and at alternate panel ■ i I… … 6// Middle SectionFlange and Web Splices, Tranverse and Lateral Bracing. — Ship Pond Bridge. points, which are intermediate between the web splices, thegirders are connected by vertical transverse sway-brace framesmade, as indicated in the half cross-section, with four panels ofX-brace angles. At…
