Upholstery, with numerous engravings and diagrams; (1904)
Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 56

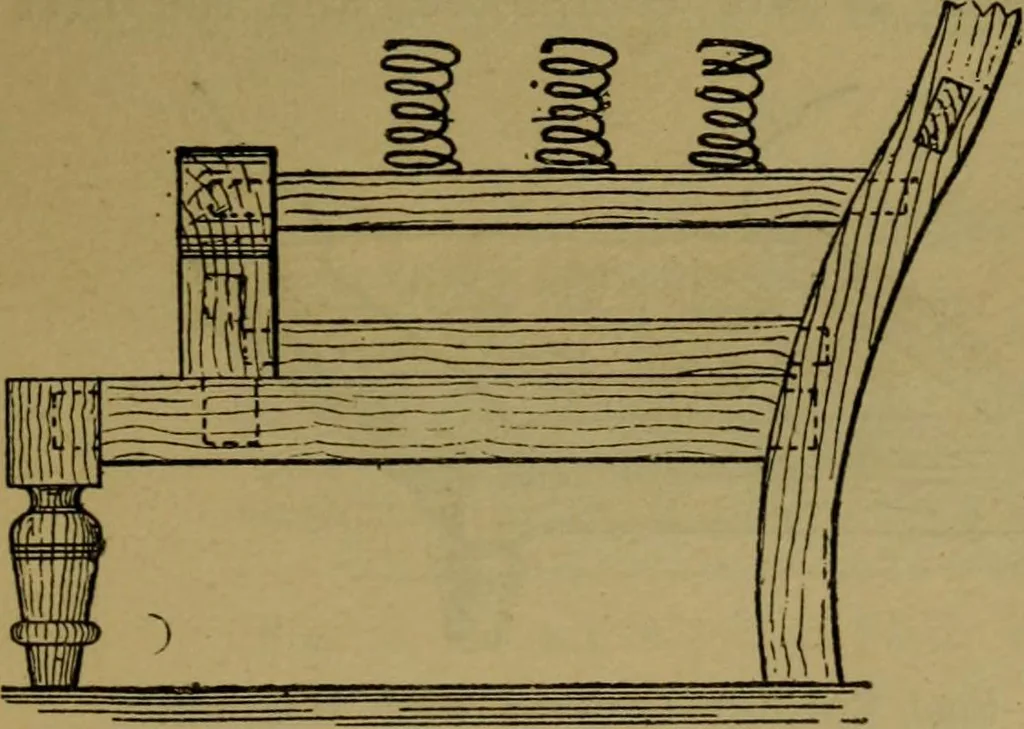

£c©=0 Fig. 52.—Webbed Chair Back showing- Positions of Springs. over to the other side, and pulling down until thesprings are compressed. Then stitch the springswith the curved needle and tie off. … Fig.54.—Springsecured withPieces of Leather. Fig. 53.—Springs on Chair Bolster Arm. The back can next be dealt with. Cut a piece ofhessian, tack it straight and tight to the head rail,and sew it to the back webs just above the top row 54 Upholstery. of springs on the line A B (Fig. 52). Pull the…Upholstery
