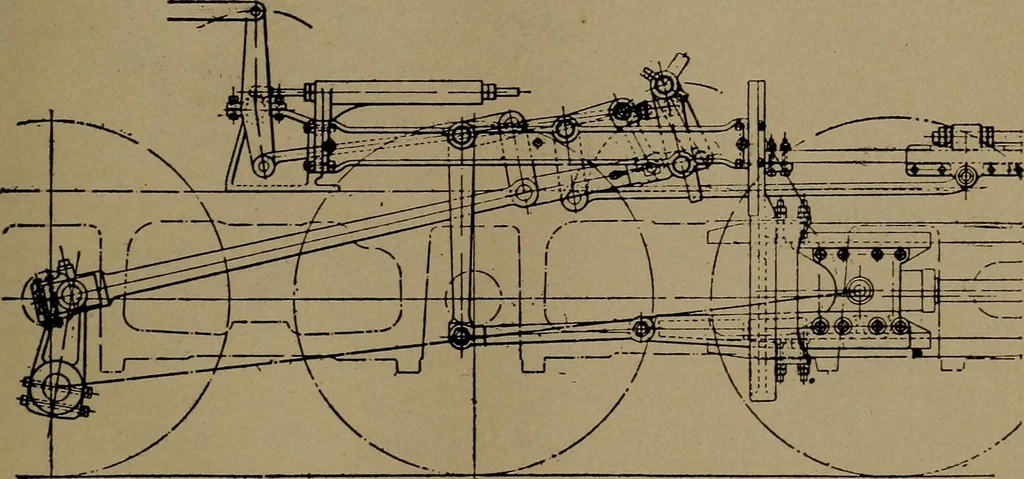

ndbell crank. These necessary variations of hardened pins and bushings affords anopportunity of retaining the action of thegearing with a degree^of accuracy whichleaves little or nothing to be desired inthe ready application of means for themaintenance of the wearing parts. Thisis a marked advance… … FIG. i. BAKER-PILLIOD VALVE GEAR ARRANGED FOR INSIDE ADMISSION. will be readily observed in comparing theillustration of the different positions ofthe eccentric crank, as shown in Fig. i,which displays the arrangement of theeccentric crank and lifter bar adaptedto an inside, admission valve, with…
