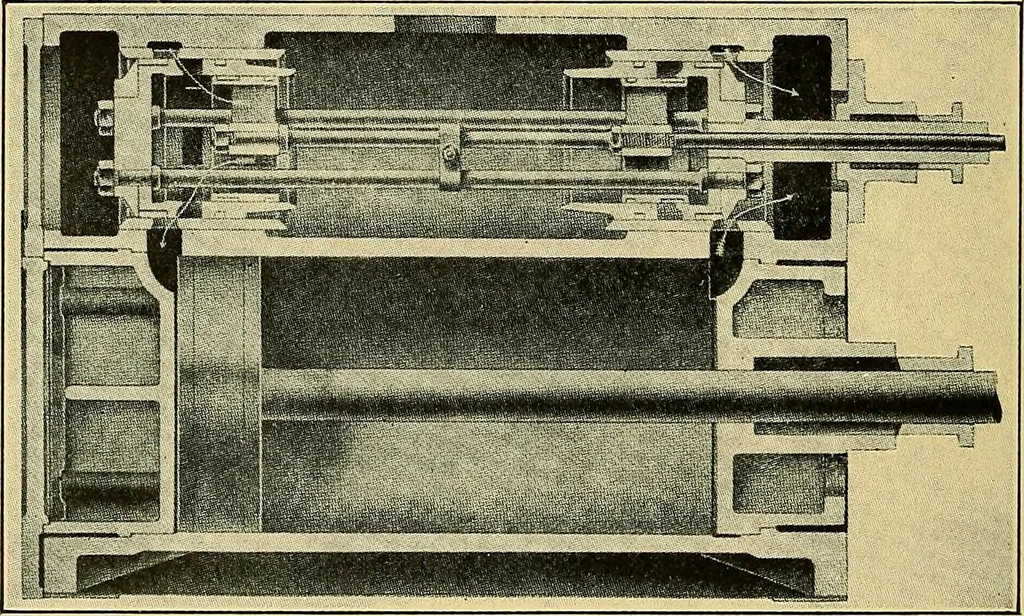

c G about90 degrees ahead of the fixed eccentric. IX— (Continued) THE BUCKEYE E^GmE—Continued The Buckeye Piston Valve The first part of this chapter treats of the older Buckeye engine withbox type of valve. In this part of the chapter we wish to give the build-ers instructions for setting the… … FIG. 105A. involves the same principles as explained for the box type of Buckeye valve,but as there are several points of difference in the details, the followinginstructions will be of value and necessity to the operating engineer: Setting Piston Valves The foregoing instructions for setting side…
