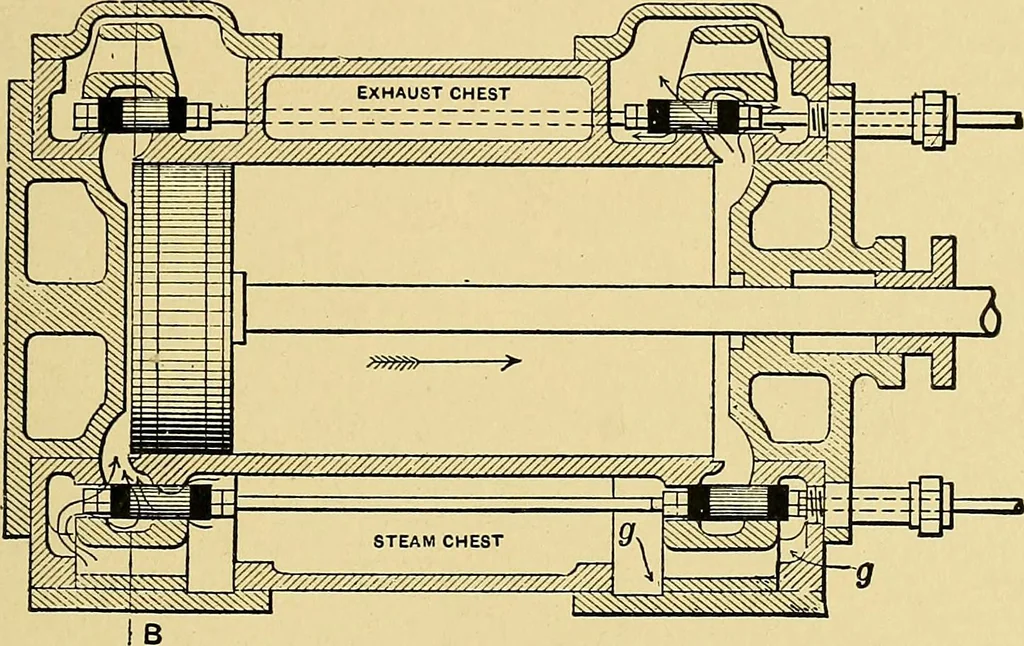

sttwo being in diagram and exaggerated for clearness. In Figs. 106, 107,and 111 the engine is on the head-end center; the head-end steam valveis open for lead, and the crank-end valve is closed, the eccentric, the link,and the arms a, H, and C being about in the positions shown. In Fig.113 the… … m-- FIG. 108. — HORIZONTAL SECTION OF CYLINDER. as shown by the dotted line dropped from Fig. 111. This has pushedarm a to the left, and has pulled the head-end valve to the right andwide open by means of arm //, rod li, and the lower connection. As thearm H is nearly in its upper or midposition,…
