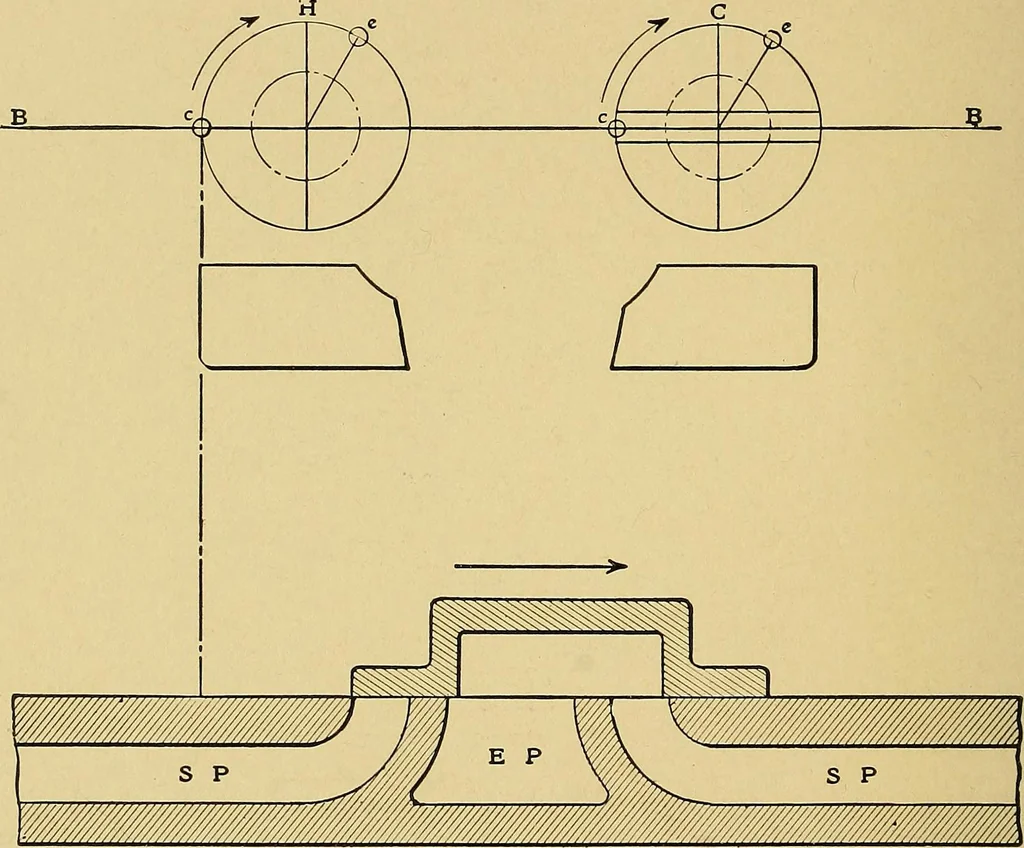

e action continues. VALVE SETTING Tracing the Action in Detail To get a more complete understanding of this, it will be well to followthe valve action, by means of Fig. 3 and succeeding illustrations, throughone complete revolution of the crank of the engine. The lap representedis 25 per cent, of… … FIG. 3. and the position of the eccentric, in relation to the crank, at e. Thegraduated scale in several of the crank-end circles is for convenience inidentifying the position of the crank in per cent, of stroke at any pointof the valve movement. The point of intersection with the line B B oithe…
