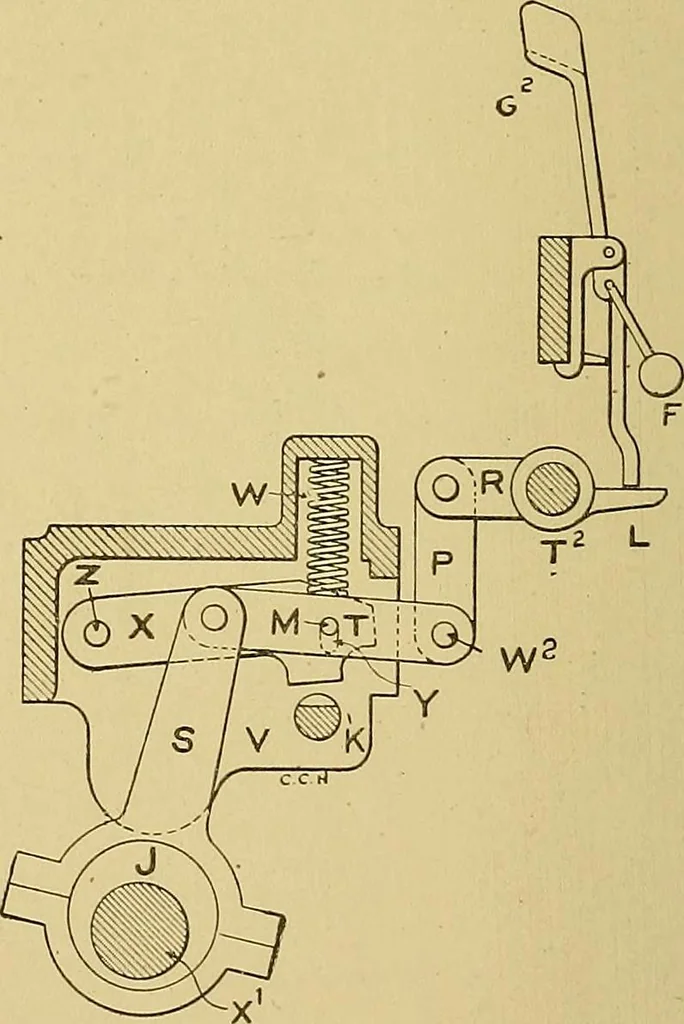

with the shipper rod, slidesalong until a slot cut in its uppersurface is beneath one end ofthe lever, X. When this happens,X, which is pivoted at Z, dropsinto the slot and holds the rodstationary until X is lifted out ofthe slot. If a sliver breaks or runs out, the spoon assumes a vertical… … Fig. 178. Back Stop Motion. 255 COTTON SPINNING 211 in the slot of the stand, to the.pin, W-, in the lower end of the link, P.The spring, W, yields and allows the eccentric to lift the pin, M, andwith it the lever, X, withdrawing X from the slot in the spring rod,which is released and the belt is…
