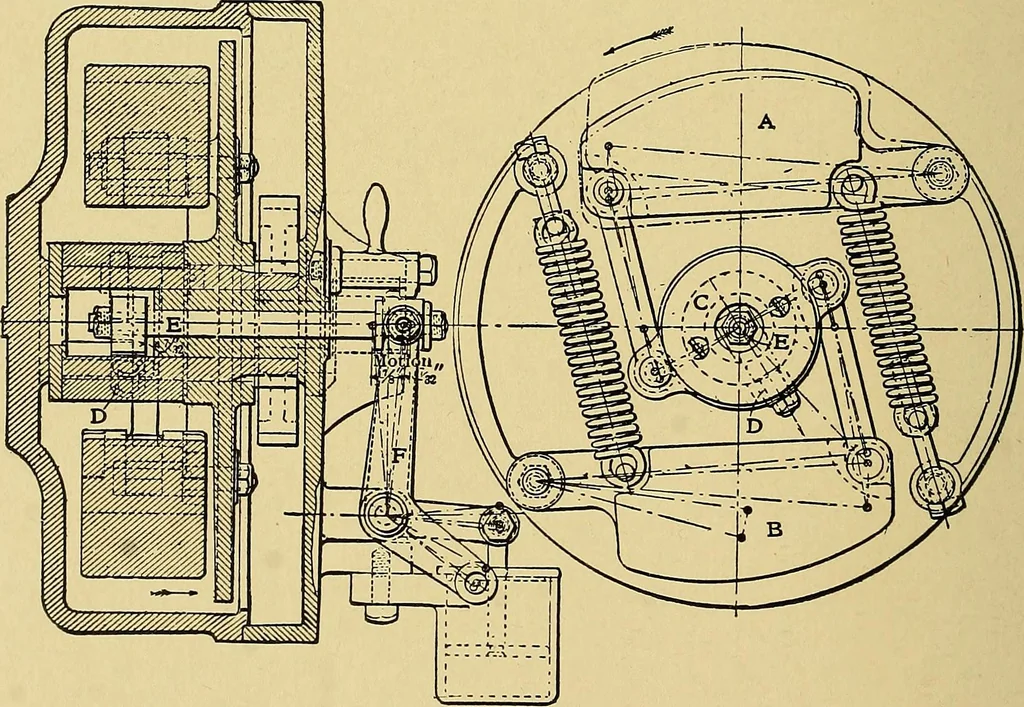

FIG. 78. … FIG. 79. stem is by this action forced to the left in the direction of its length,and this moves the double lever F to which the stem is connected out- THE BROWN ENGINE 79 side the governor case. The connection of the doul^le lover F to thetrip shaft is shown in Fig. 80, in which is also shown the…
