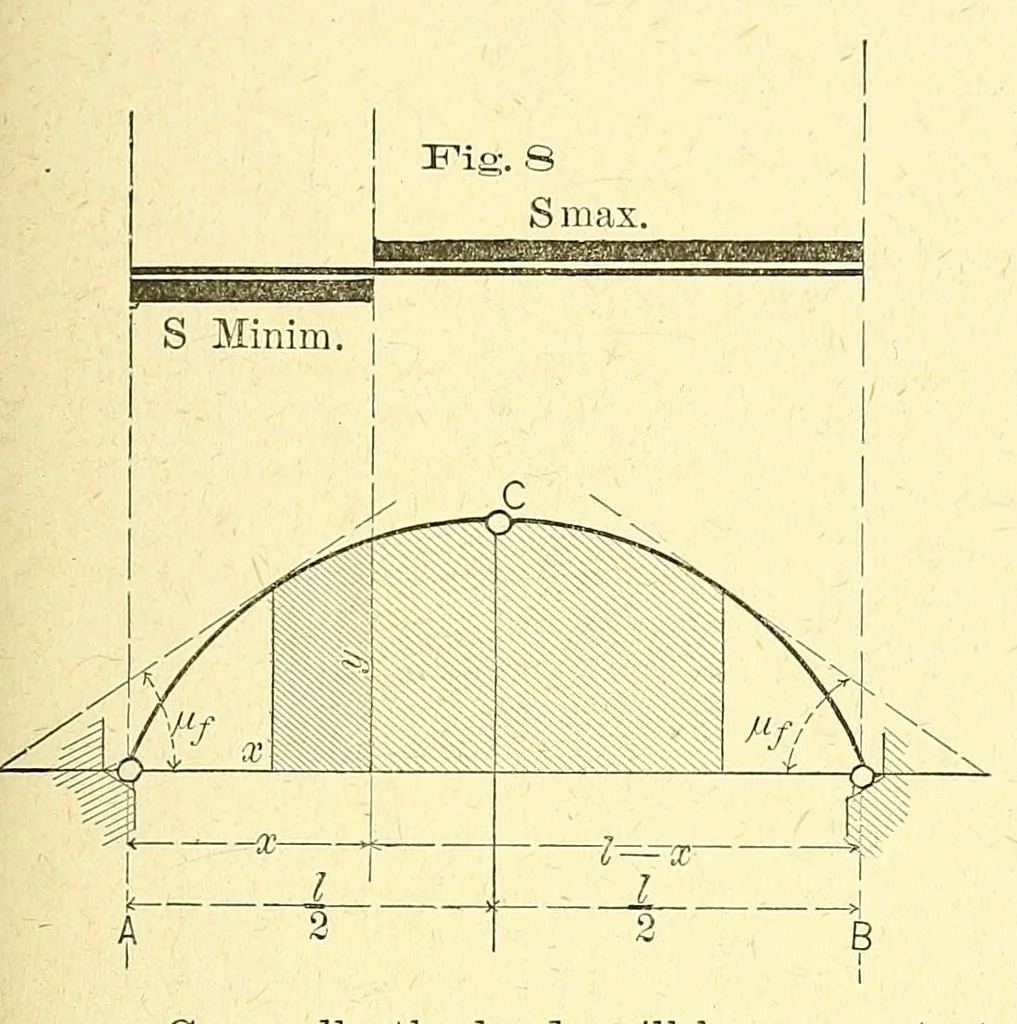

32, MAXIMUM STRAINS IN JOINTED BOW GIRDERS. I begin with s the value governing the 1 maximum and minimum of S the shearing and S min., when tang. jjx>1 and Fig. forces, and we must bear well in mind, 2 that S is not acting in a point, but as well as tang. jx% in the whole panel. 8, the same when… … significations. Generally the loads will be concentrat- Fig. 9 a=The loads cover the girder ed in certain points of the girder — the from the point (x—a) to any point to- panel points — and in constructing the wards B and again from the point x to positions of the loads corresponding to the same…
