Easy steps in architecture and architectural drawing .. (1915)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, Ill., Printed by F. J. Drake & co. · leaf 635

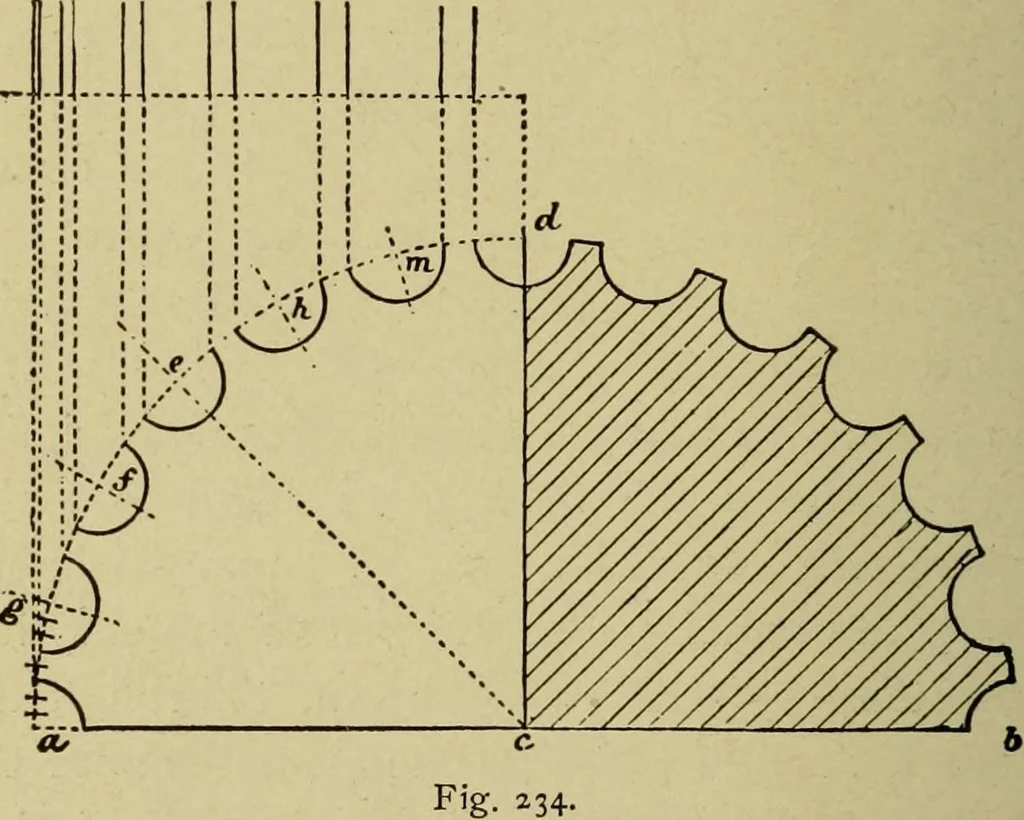

inwhich all the centers and center lines are given.Rules for describing the ellipse were given inprevious pages, that should the studentexperience any difficulty in describing the 218 ARCHITECTURAL DRAWING SELF TAUGHT elliptical curves, he may refer to those pages forassistance. SOMETHING ON ORDERS… … enough for our purpose, to be able to drawthem, and to give to each order its own pro-portion and arrangement. Before we can dothis, however, it will be necessary for us to beable to lay off a section of a column, showing ARCHITECTURAL DRAWING SELF TAUGHT 219 the position of flutes and fillets in…
Architecture · Architectural drawing
