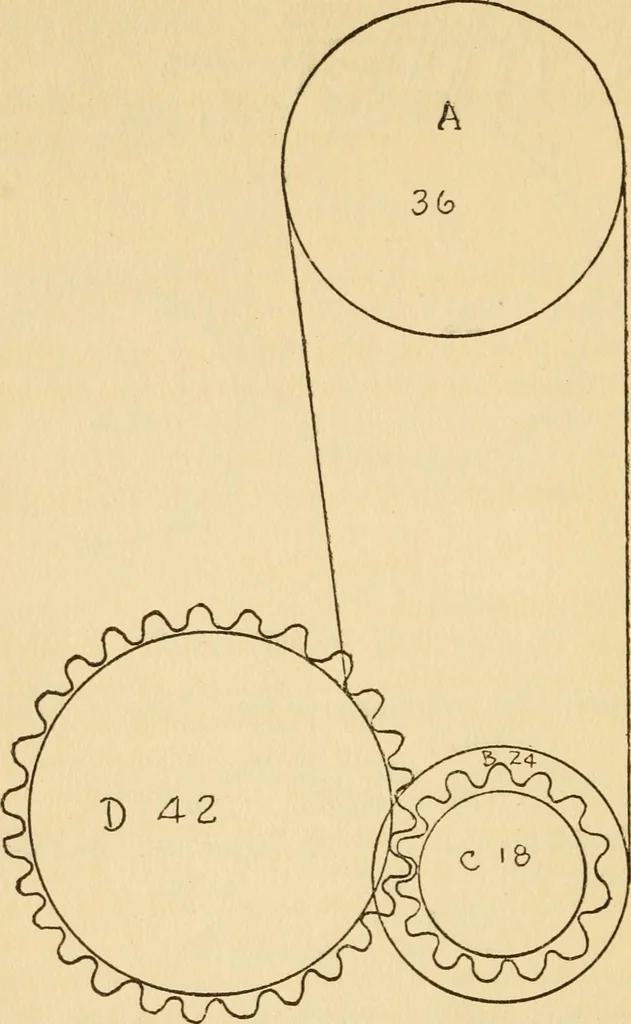

volutions of the worm, if single-threaded, by the number of teeth in the worm gear. Ifdouble, multiply the revolutions of the worm by 2 and dividethis product by the number of teeth in worm gear. CHAPTER III A combination of belts, pulleys aivd gears. This example is a combination of belt pulleys… … A is a driver, B is driven 24 inches in diameter, C is adriver with 18 teeth and D is a driven with 42 teeth.Example: 350X36X18 -=225. 42X24Suppose D 42 teeth to be a driver which makes 160 revo-lutions per minute, what will A make ?Example: 160X42X24 =248.88. 36X18 If the line of shafting makes…
