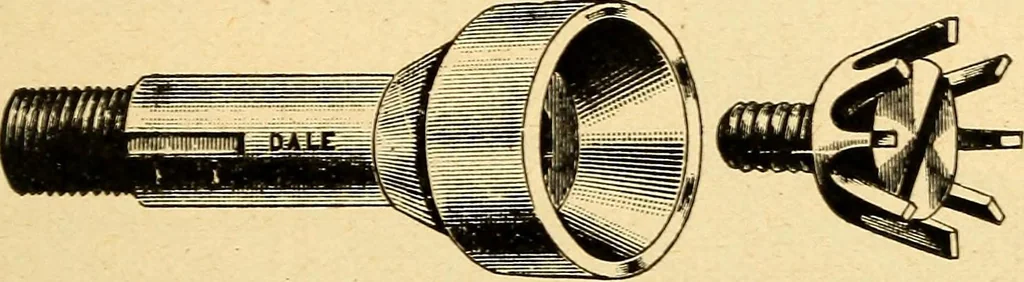

e has been gradually extending as the variousattachments have been added to the lathe, until it is at pres-ent used for quite a variety of purposes. Fig. 90 shows thearbor chuck with screw of the arbor adapted for a pinwrench; Fig. 91 shows the same chuck opened that its actionmay be understood.… … Fig. 89. Stone Setting Chuck. or oil stone wheels or saws. The collars at A, B are remov-able leaving a space of J^ inch if desired. Fig. 93 shows it as used to carry rounding-up cutters inconjunction with a wheel cutter, thus making it unnecessaryto purchase a rounding-up tool, if one has the…
