The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses (1903)

Goodrich, Ward L. [from old catalog] · Chicago, Hazlitt & Walker · leaf 123

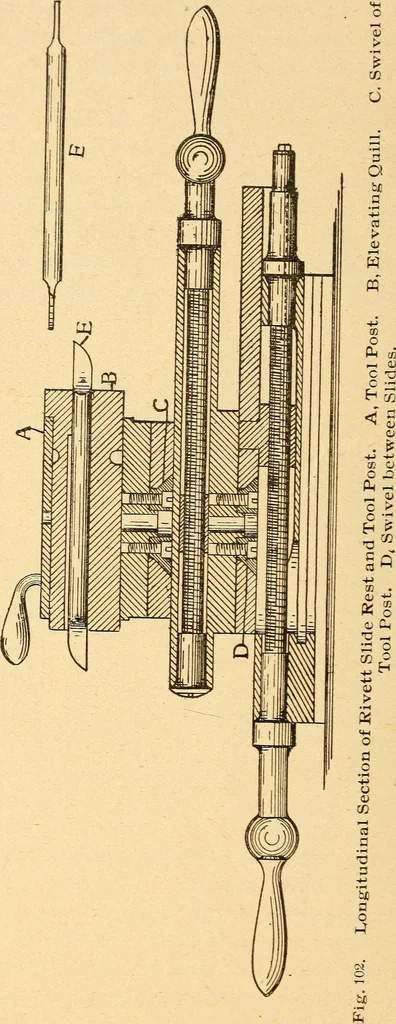

An illustration from The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses, 1903, leaf 123 — de rest, which is shown in elevation at Fig. 101. This is atwo-slide rest, with swivel, H, between the slides. Unlikethe other rests, this has its shoe formed on the base of theslide instead of fitting the shoe of the lathe. The tool postwill hold either square or round tools, and the tool is… … THE AMERICAN LATHE. 1 23 fastening for the various attachments, which will be dis-cussed later. The tool may be taken out, sharpened andreplaced without changing the angle or height. Figs. 102, 103 and 104 are longitudinal and cross sectionsand elevation of the Rivett slide rest. As will be seen…
