Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 269

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 269

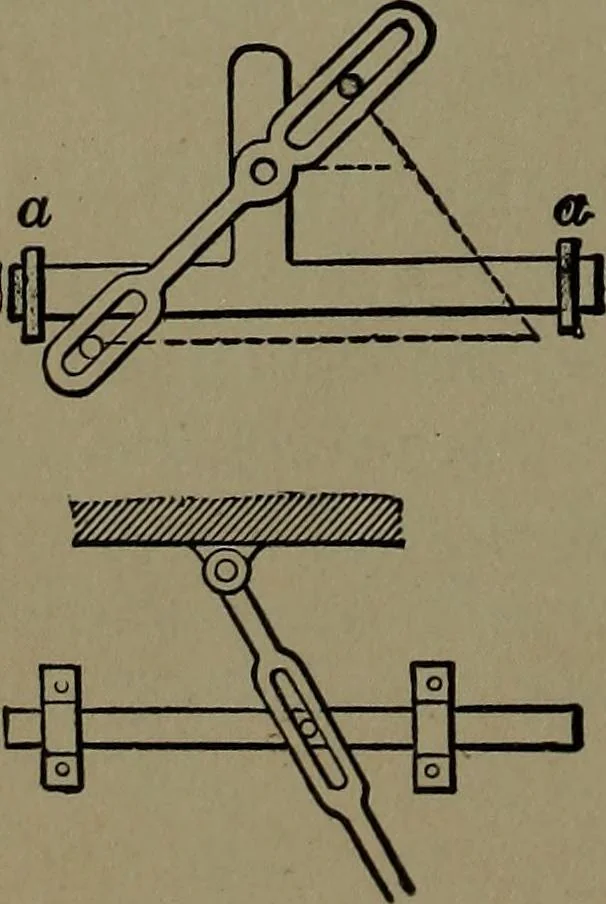

1047. ALTERNATING RECTILINEARMOTION from studs on a rotating disc. Thebar is carried forward by the stud on the discstriking the projection on the bar, and the barreturns by the movement of the bell-crank leverand opposite stud. 1048. TRAVERSE BAR, operated by aslotted lever. The upper pin being…
