The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses (1903)
Goodrich, Ward L. [from old catalog] · Chicago, Hazlitt & Walker · leaf 219

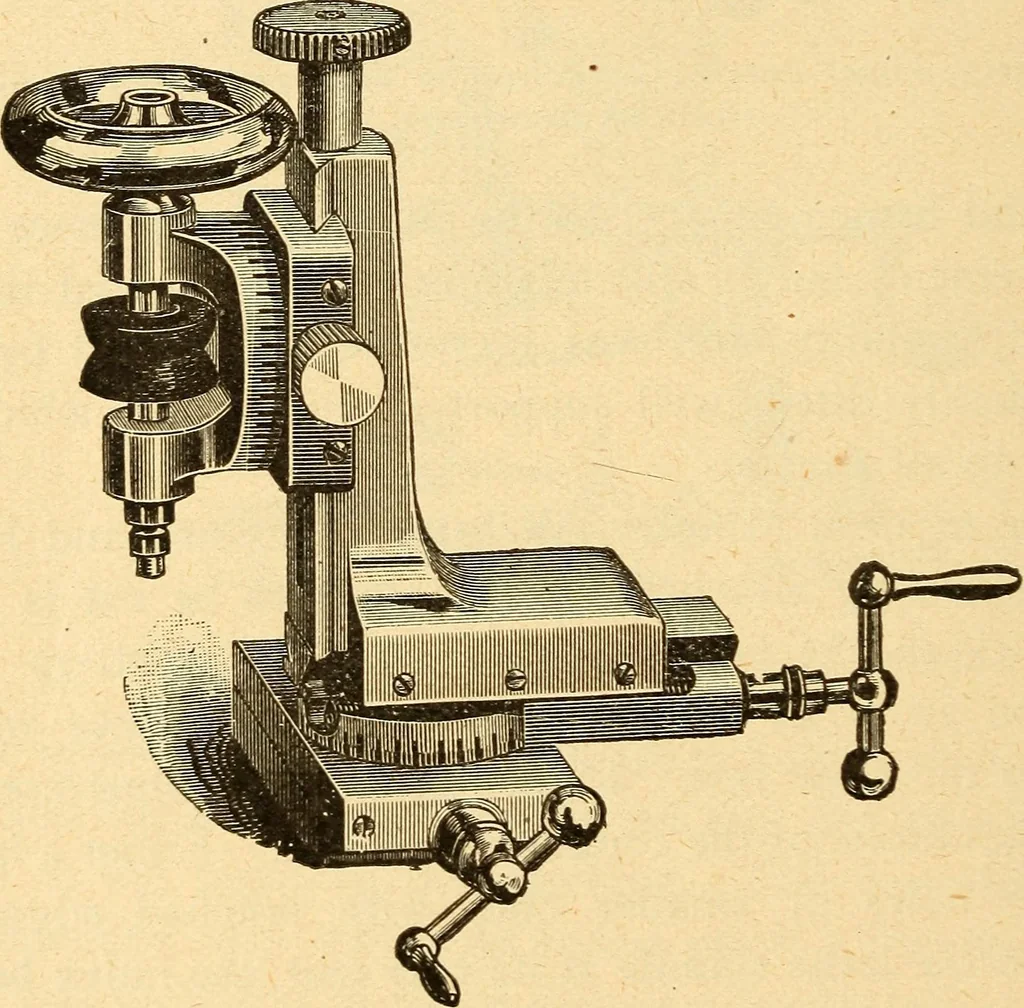

Fig. 194. Hopkins Wheel Cutter boltedto Slide Rest. Fig. 195. Moseley 3-SpindleWheel Cutter to bolt on sliderest; also made with one spin-dle ; the pump center shown atthe rear is used to align thecutters with ench other andwith the lathe center. … Fig. 196. Webster Whitcomb Wheel Cutter mounted on slide rest inplace of the top slide, which is removed, when desiring to use thewheel cutter. THE AMERICAN LATHE. 219 important that a close fit be secured here, as any loosenesswould result in angular motion between the spindle and in-dex, and thus…
Clocks and watches · Lathes
