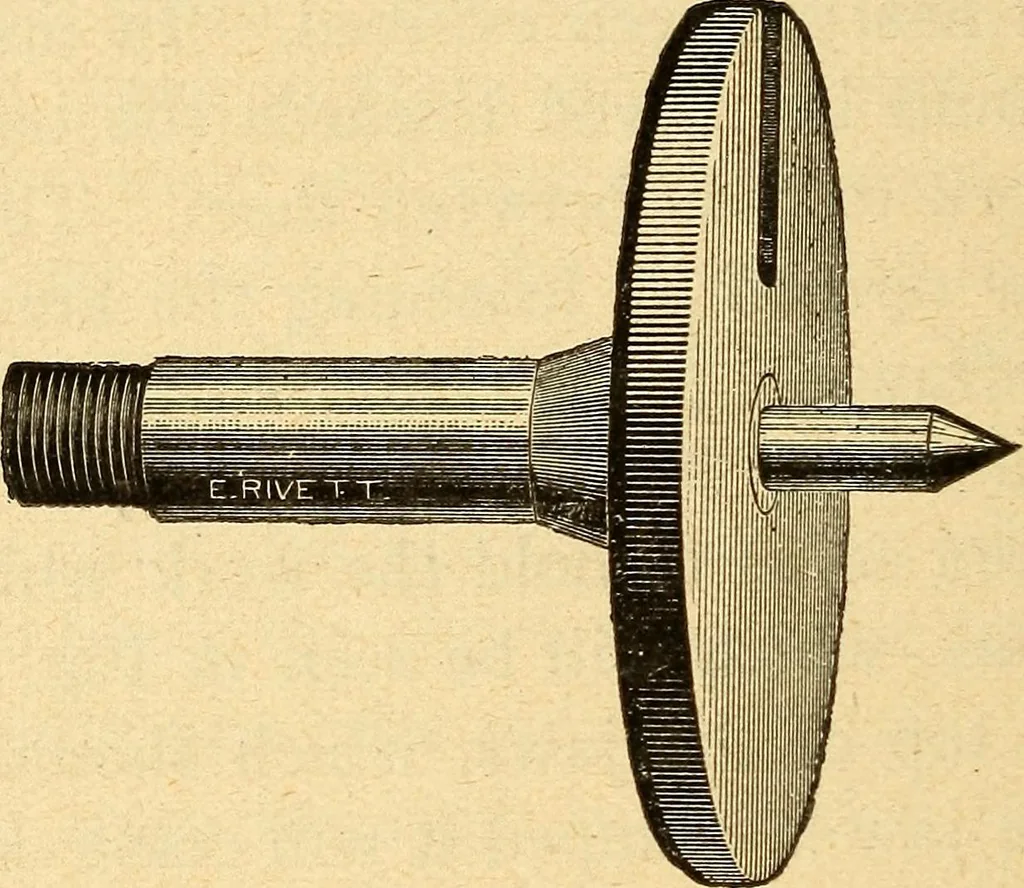

An illustration from The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses, 1903, leaf 83 — equiredpoint in the work. S2 THE AMERICAN LATHE. Fig. 53 illustrates a live center with dog face plate. Thisattachment is intended for turning work between centersby means of a dog. The work is first centered and thencenter drilled to a 6o-degree angle, the same as the center.Centers should always… … Fig. 53. rotated by a dog clamped on the work, or by a stud boltedin the slot of the face plate. By substituting a female for the male center, Fig. 54, thisattachment will be found useful in clock, music box andthe heavier work having pivots, with which it is desirable to.have the other portions…
