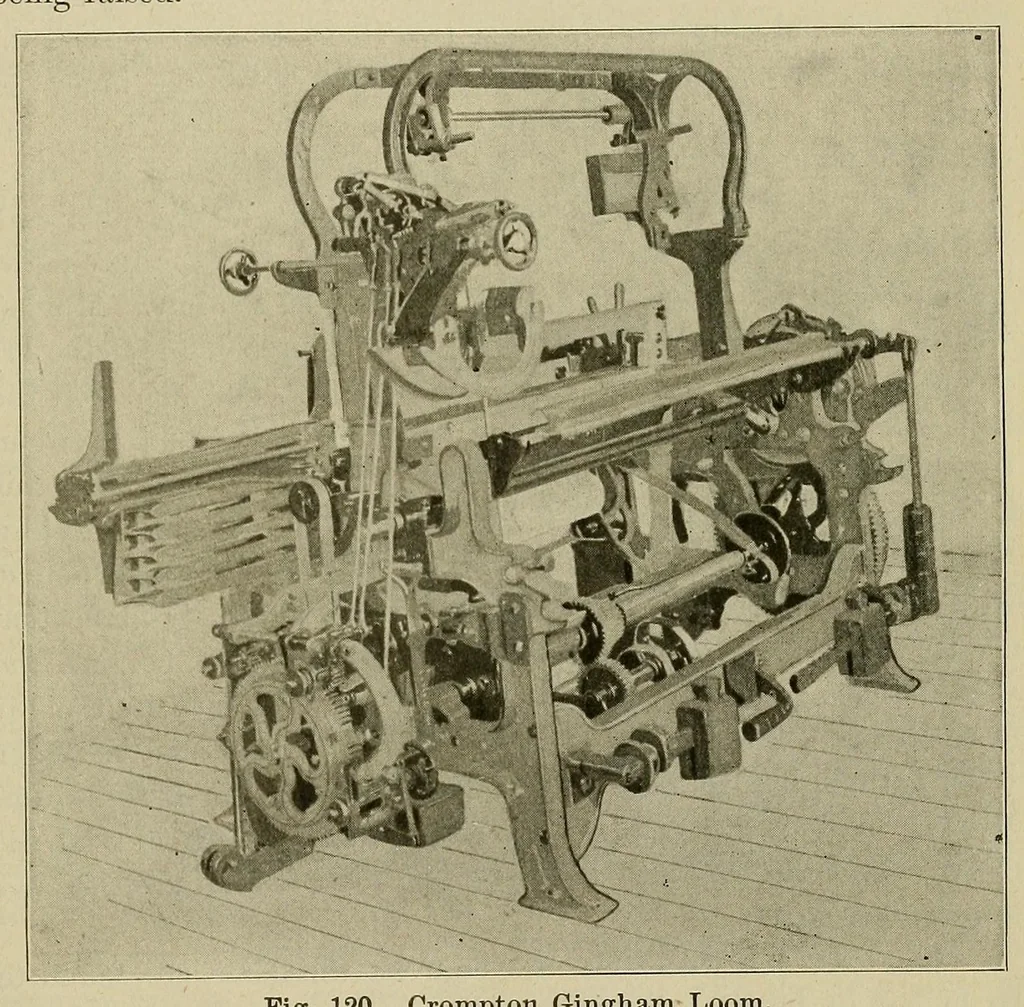

llowing the connecting rod to fall, thus drawmg the projection on the long slide into place, and completing the revolution of small gear, when the boxes will return to their normal position. The spring clamp, L, serves the purpose of a protection device to prevent breakage of bonces or shuttles m… … Fig. 120. Crompton Gingham Loom. Timing and Fixing of the Motion. To time the motion set the pin gear with the pin on the bottom center when the crank is on the back center and the shuttles bemg picked from the box §ide ; or with the pm on the top center when the crank is on the back center with…
Weaving
