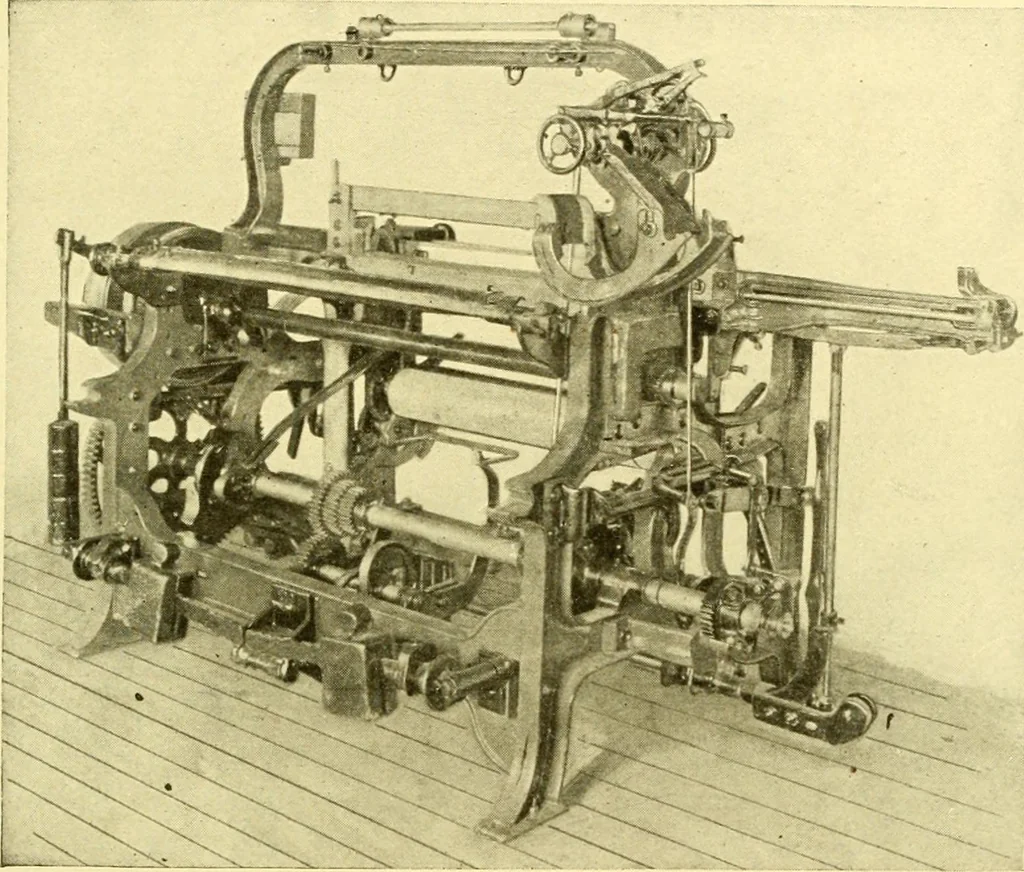

se projections areof such form as to fill the spaces m the small segment gear, and 194 WEAVING 181 act the part of a broad tooth, ineishing with the spaces m the largesegment gear. One side of the sRde is twice as long as the other, and conse-quently when one projection is filling a space on the… … Fig. 118. Cromptou Gingham Loom. to one of the small levers in the upper motion under which therisers m the chain pass. The flat portion of the projection, whenin the small segment gear, almost touches the teeth of the largesegment gear, so that the projection catches wlien the smallsegment gear is…
