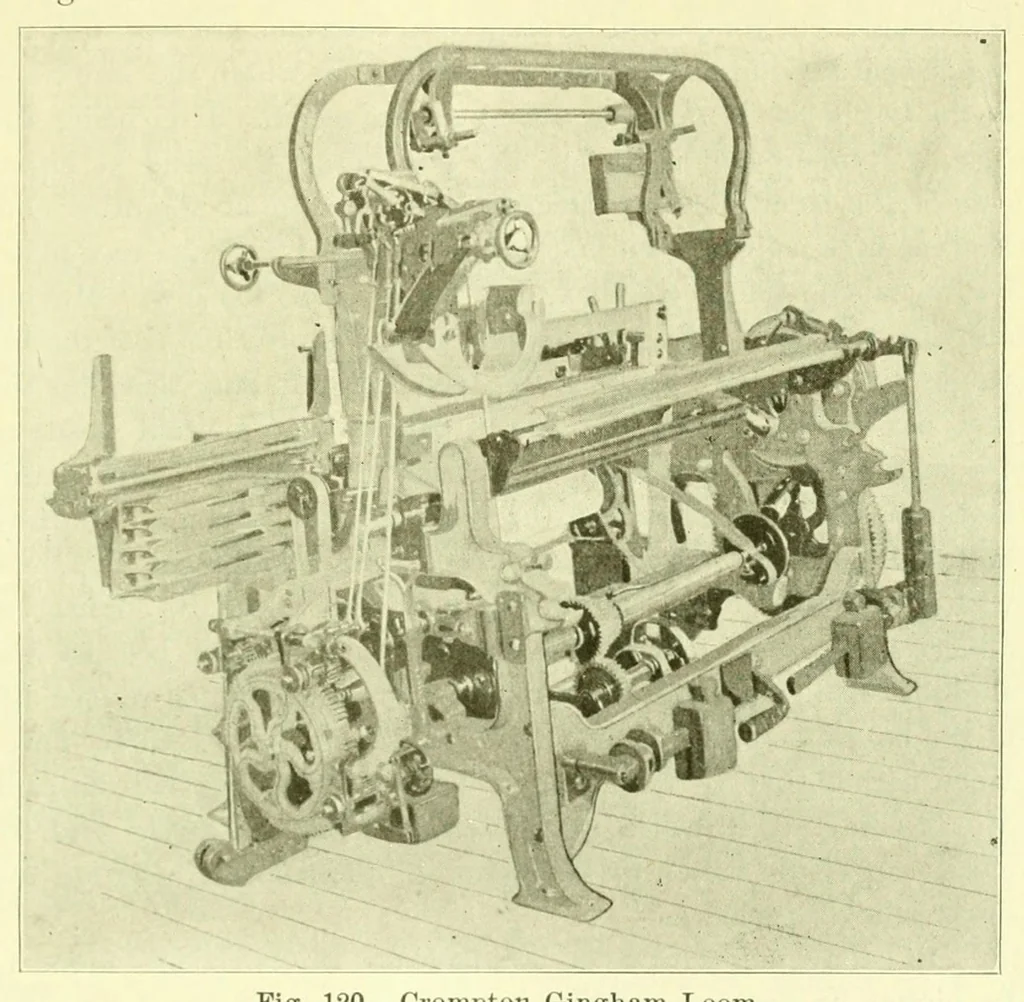

the connecting rod to fall, thus draAvhig the projection on the long slide into phue, and eoniplethig the revolution of small gear, when the boxes will return to their normal position. The spring clamp, L, serves the purpose of a protection device to prevent breakage of boxes or shuttles in case of… … Fig. 120. Cromptou Gingham Loom. THining and Fixing of the Motion. To time the motion set the pin gear with the pin on the bottom center when the crank is on the* back center and the shuttles being picked from the box sid(! ; or with the pin on the top center when the crank is on the back center…
