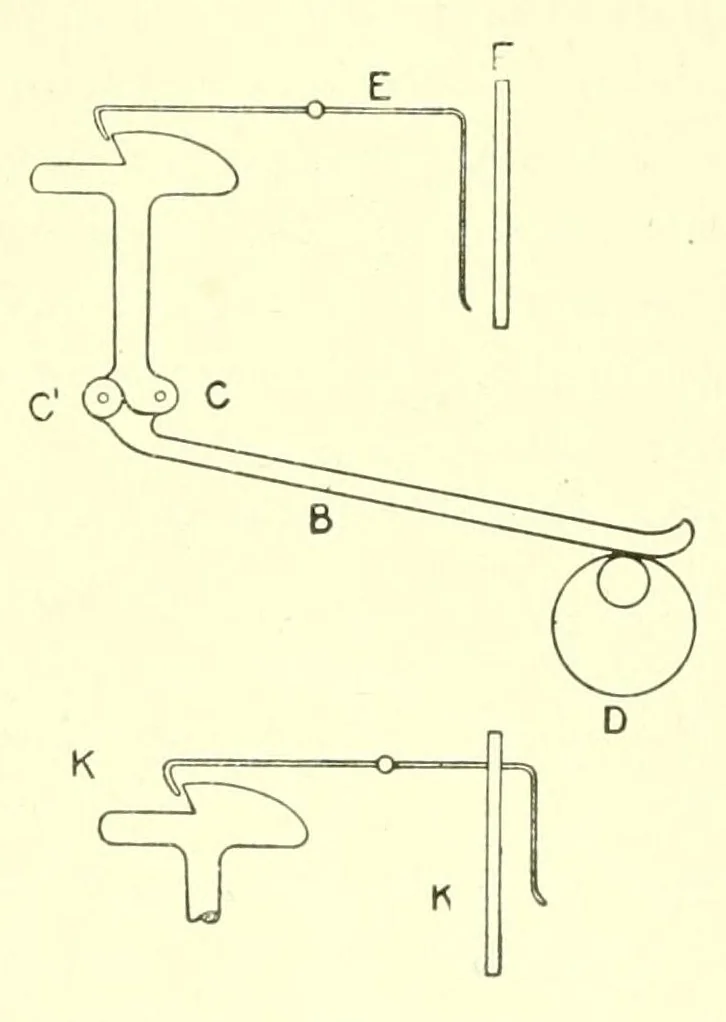

p msteacl as shown at L, thus lifting the hook out of the way of the hammer and preventing any action from tak- ing place. Consequently as long as the filling is across the grate the loom continues to run. There are two distinct forms in w^hich the prongs of the fork may be bent as shown at M and… … Fig. 102. Filliuff Stop Motion. any kind of work. In setting the sto}) motion several facts must be considered as governing its most efficient action. As strain tends to weaken the filling the fork sliould be set so as not to cause excessive strain. The less movement re([uired for the fork, the…
