Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 314

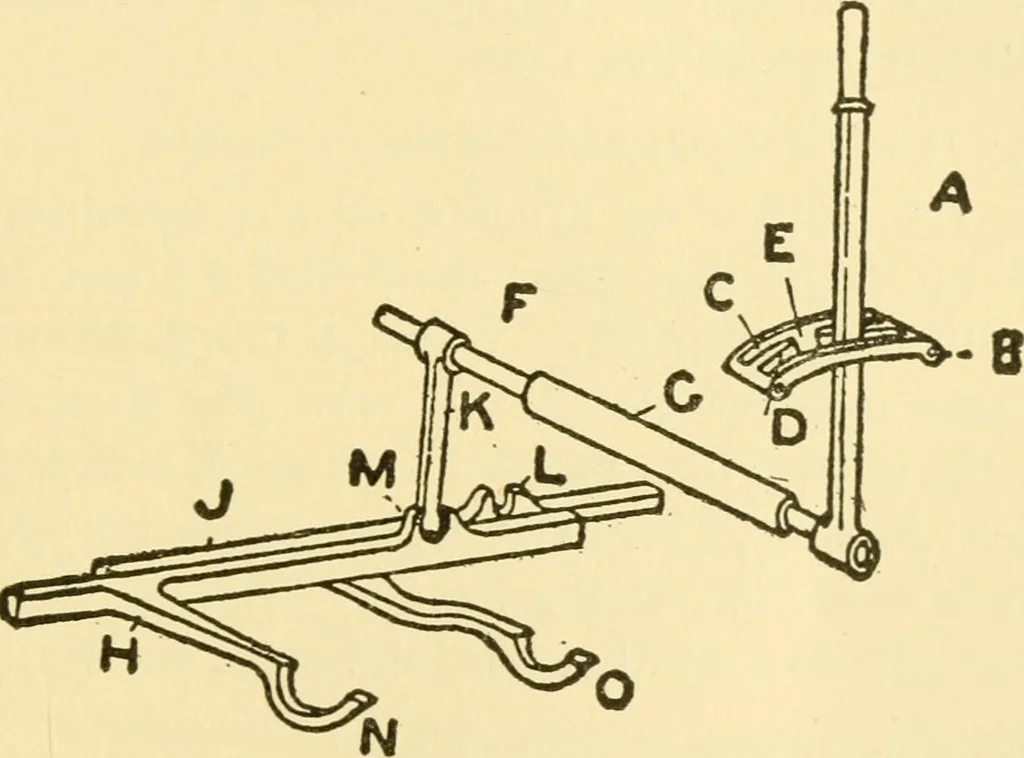

giving respectively afirst, second and third speed. TRANSMISSIONS 2S7 Ques. What is neutral position? Ans. The position of the gear lever, as in fig. 175, whichthrows all the gear wheels out of mesh, and consequently,although the engine may revolve the shaft G, the power isnot communicated to the… … Fig. 176.—View of gear shifting lever, selector, and operating mechanismof a selective transmission. The parts are: A, gear shifting lever; C, D, slotsin selector; E, gate; F, oscillating shaft; G, bearing for oscillating shaft;K, selector lever; M, L, selector lever slots; H, J, selector bars; N,…
Automobiles
