Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)

American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 148

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 148

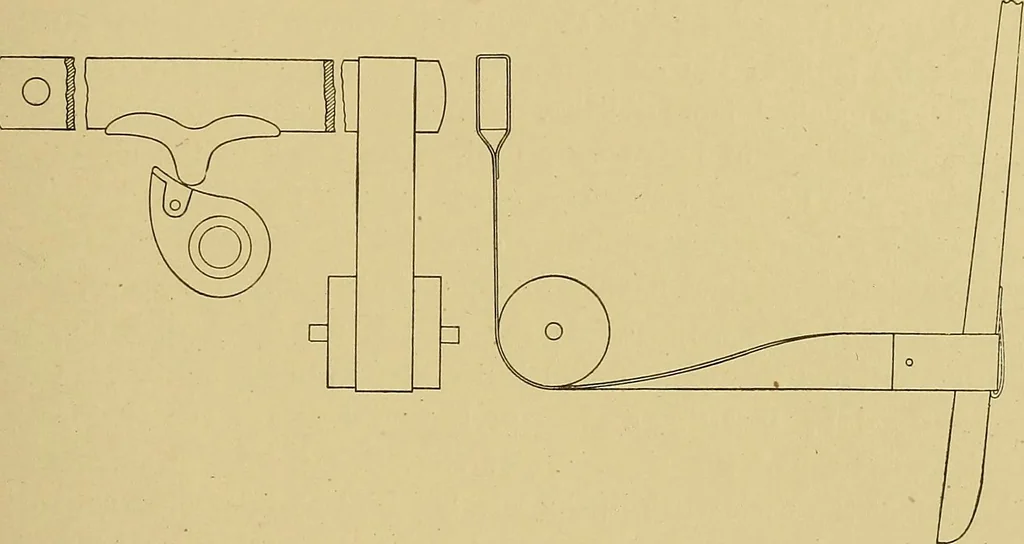

her, and also between the nut andthe leather; these give a better grip on the lug. If the sweepstick is a trifle narrower than the picking stick or dog, it would bebest to place a strip of leather between the sweep and the lug beforethe lugs are bolted to the sweep; otherwise, the picking stick or… … Fig. 80. Canvas Drive Picking Motion. stick connections about | inch longer than is necessary to taken upthe space between the stick and the dog. Next attach the stirrupstrap to the back of the picking stick, and fix it so that the connec-tions will be level. An extra hole above and below the one…
