Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 196

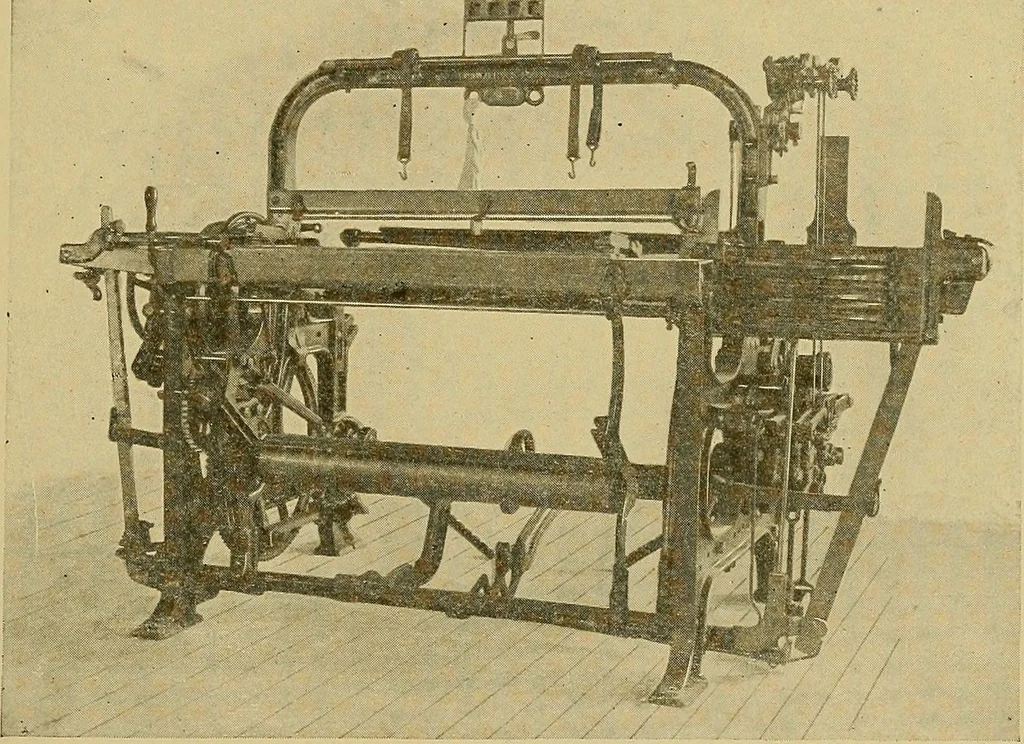

race-plates with harmful effect. A loose lock-nut is also acommon cause of the boxes binding in the slides. The above directions apply to the fitting and fixing of boxesregardless of the motion employed to actuate them. Before de-scribing the setting of the boxes, due consideration must be giventhe… … Fig. 107. Knowles Gingham Box Loom. KNOWLES BOX LOOM LOWER nOTION. This box motion derives its movement from elliptical gears,and consequently has a fast and slow motion. The gears are timedto impart their greatest speed during the change from one box toanother, which regulates the color of filling…
Weaving
