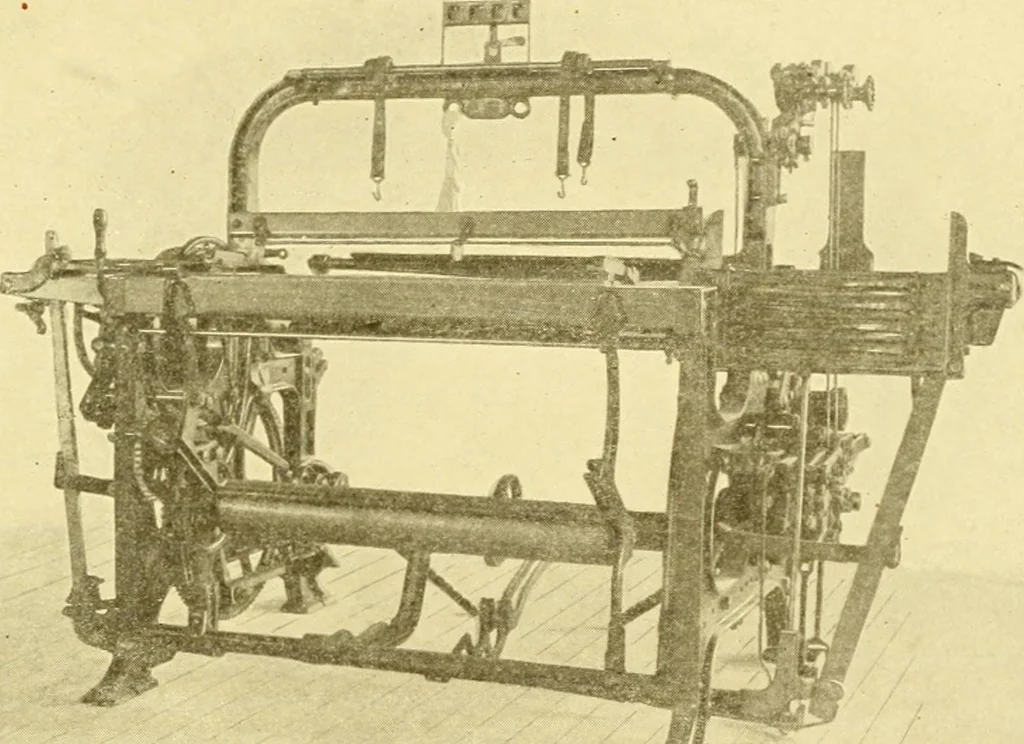

the race-plates with harmful effect. A loose lock-nut is also acommon cause of the boxes binding m the slides. The above directions apply to the fittmg and fixmg of boxesregardless of the motion employed to actuate them. Before de-scribing the setting of the boxes, due consideration must be… … Fig. 107. Knowles Gingham Box Loom. KNOWLES BOX LOOM LOWER nOTION. This box motion derives its movement from elliptical gears,and consequently has a fast and slow motion. The gears are tunedto impart their greatest speed during the change from one box toanother, which regulates the color of filling…
