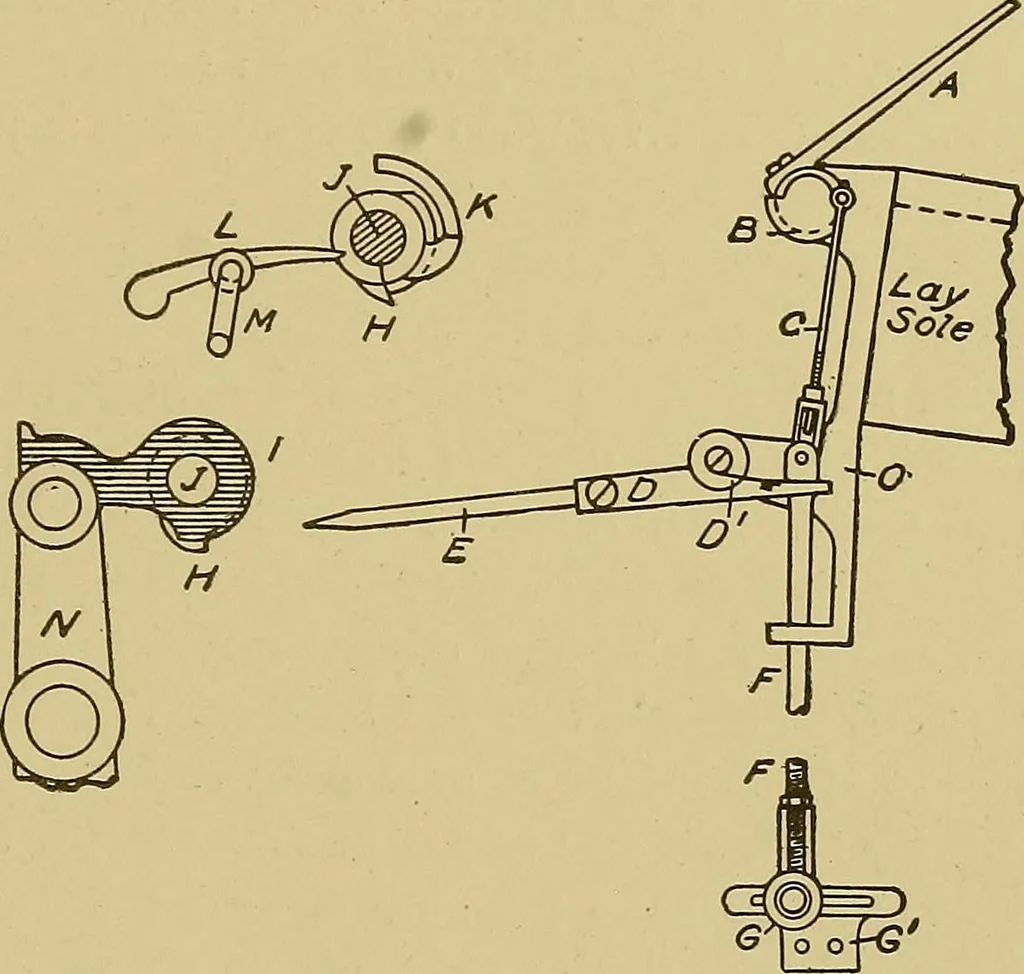

ay, leaving the receiver in position to act. This protectionslide is necessary for the reason that often after the loom isstopped, the lay is drawn forward and then pushed back, whenthe feelers pass under the filling, and if no protection slide wereprovided the dagger would strilie the receiver… … Fig. 132. Knowles Broad Loom Motion. Timing the Motion. The mclmed slide, F, is adjustable tocontrol the action and position of the feeler wires. By loweringthe front end and raismg the back, the feelers are caused to risemore quickly. On looms fitted with two sets of feelers the slidemust be set…
