Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 57

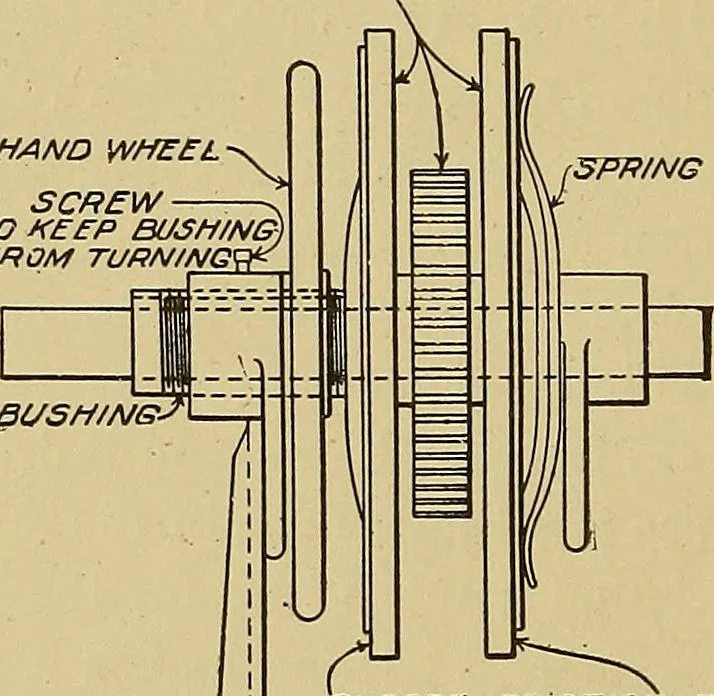

HAND W/iEEL-^ SCREWTO KEEP Bi/Sfy/Nt^jFROM TURNINGS §USH/NG- … RUBBER FRfCT/ON PLATEKEYED ON ARBOR, BUT FREETO MO\/E ENOW/SB Fig. 35. The press roll is placed below the beam and is supportedon two lever arms, which can be raised or lowered to suit thebeam. The weights placad on a lever connected to the sup-porting shaft are regulated to suit the pressure…
Weaving
