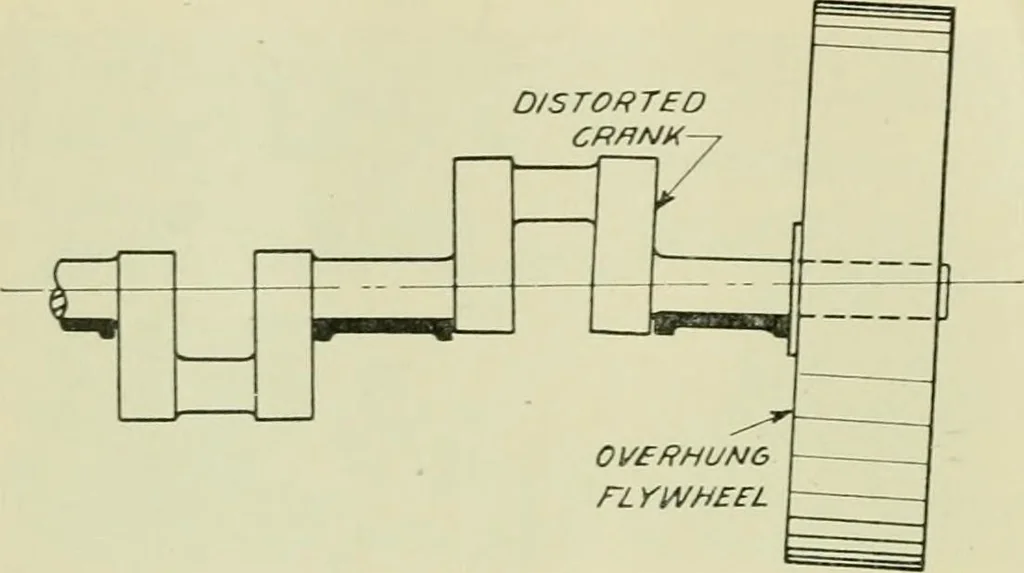

oportional to this difiference. As an example, Fig. 8 is a graphical representation of conditionsfound in a 7-inch single-crank shaft. In this diagram the distancesbetween concentric circles represent two one-thousandths of an inchand the heavy circle denoted by zero is taken as a reference… … Fig. 6. (Deflection Exaggerated for Purpose of Illustration.)
