Wheels and wheeling; an indispensable handbook for cyclists, with over two hundred illustrations (1892)
Porter, Luther Henry · Boston, Wheelman Company · leaf 318

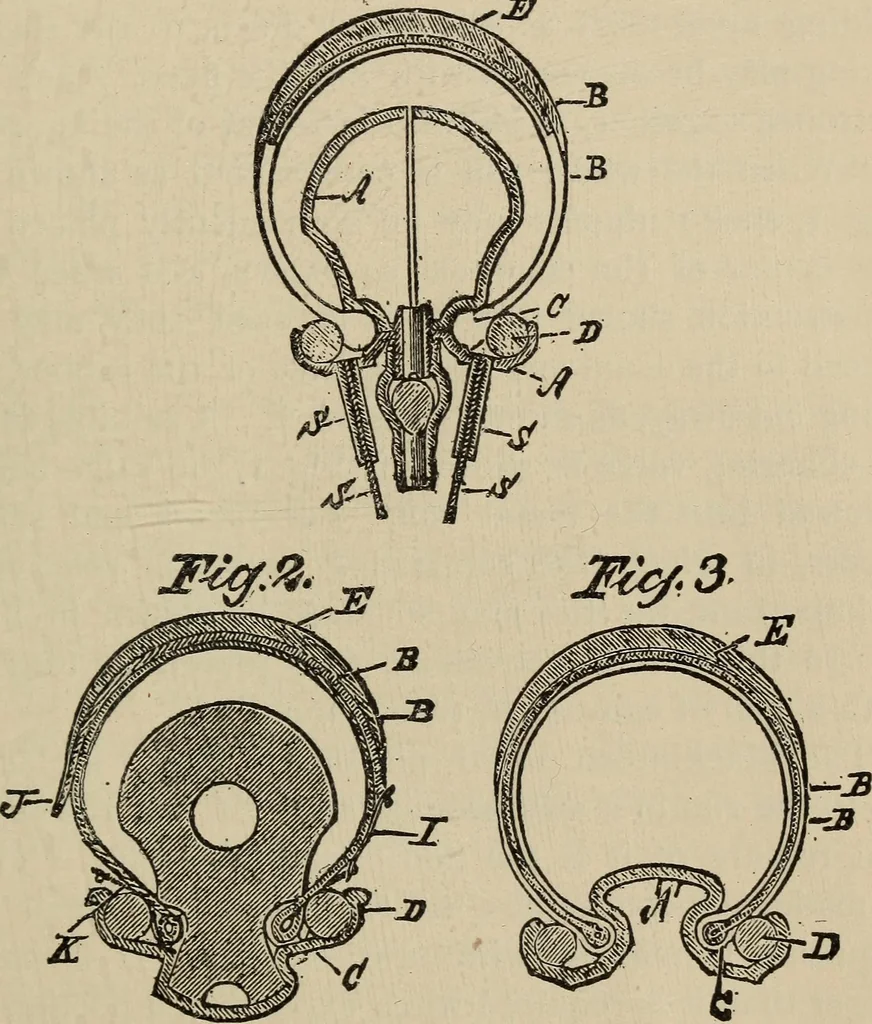

repairs it is securely held when in position. The supporting centre may be formed either bythe metal wheel, A, as shown in Fig. 1, or by therubber centre, F9 as shown in Fig. 2. The inflatableenvelope, £, is held in place in the wheel rim by beingformed with enlarged edges, C, which are held… … Lunge en Pneumatic Tire. to securely hold the edges, C, and to bind them moretightly in place the greater the pressure of the air.The inflatable envelope may be made as shown in Fig.i, in which the outer part is rendered non-stretchable 2gS WHEELS AND WHEELING. by the insertion of a web of canvas,…
