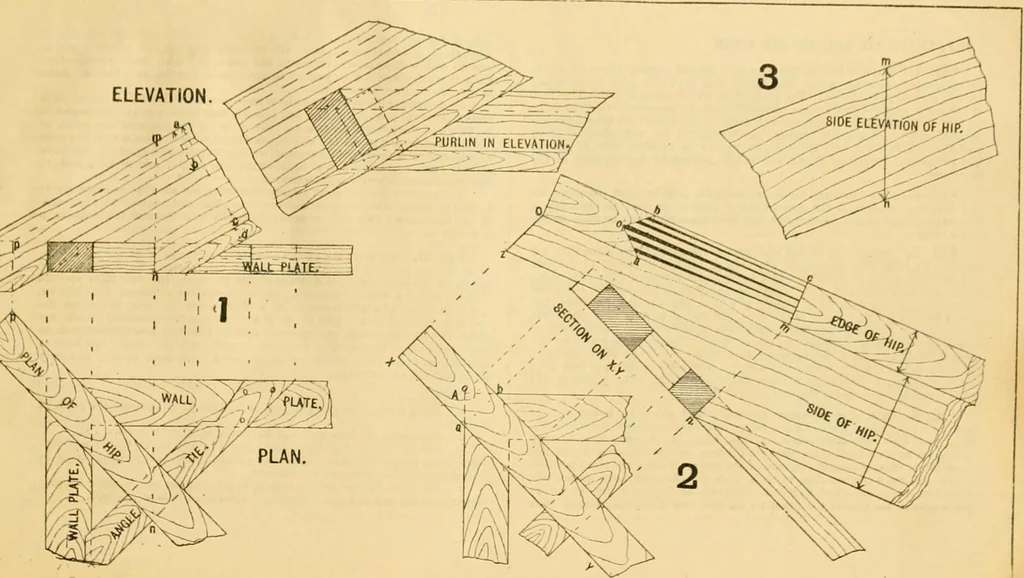

HIP, ANGLE TIE AND DRAGON PIECE rig. 1- Shows a section and plan of a hipped corner, where an angletie and dragon piece are used. The hip is not shown in plan as it wouldtend to confuse the drawing. The pitch of the roof is taken at 45°. The footof the hip is prepared in the same way as the foot of…
