Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 142

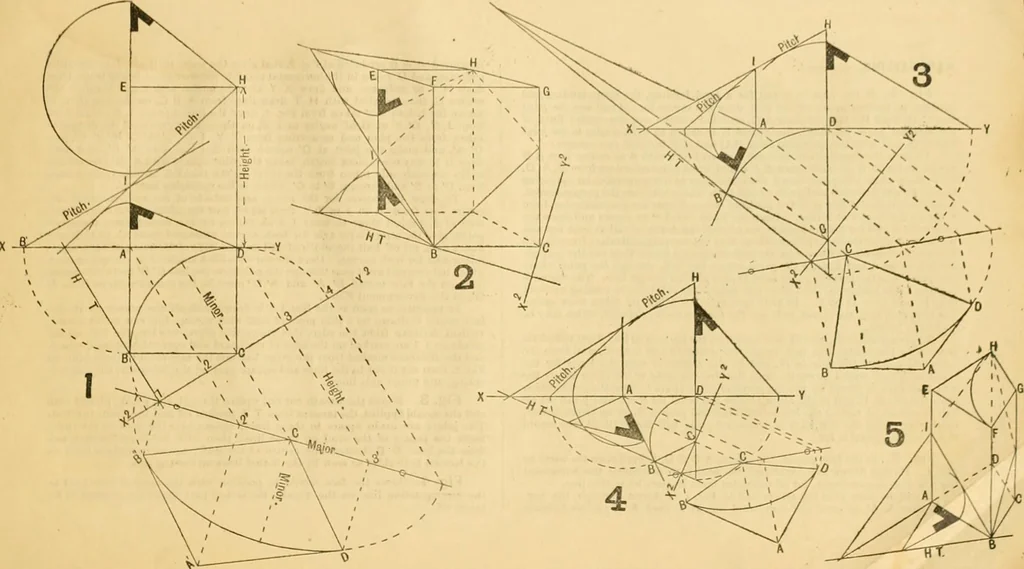

Shows the tangents making an obtuse angle. Fig. 4. Shows the tangents making an aoute angle, the constructionand lettering being the same as for Fig. 1, with the exception that both bevelsare found on one horizontal plane. The bevels are found on the principle offinding the inclination of an… … HINDRAILING—continued. Fig 1. Is the plan of a rail for a level landing, the risers landing andstarting in the springing of the well, draw the centre line of rail and the jointline C D, draw the tangent lines A B, and E F, which are the centre lines ofthe straight parts produced, the line A E is…
