Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 146

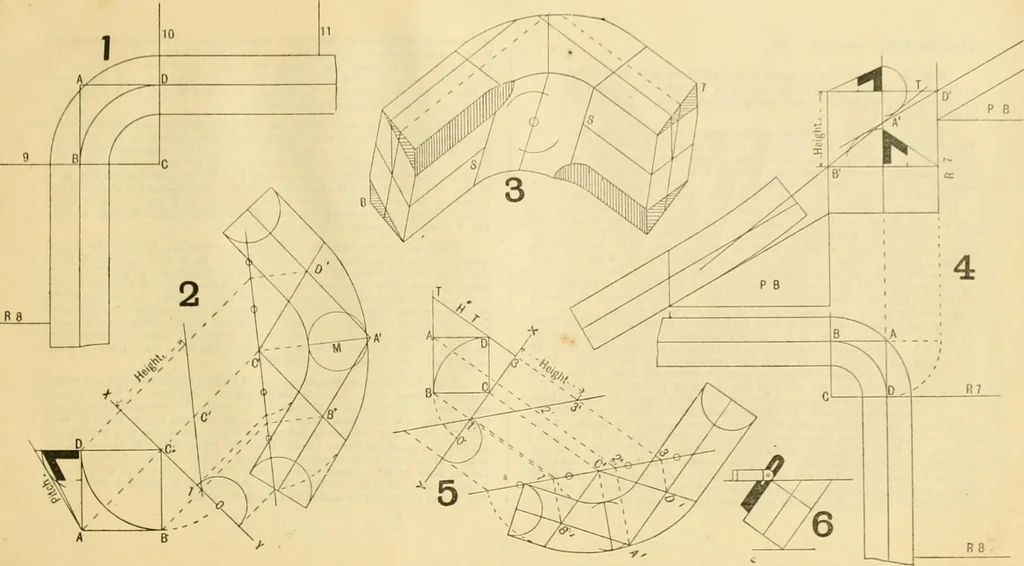

s as possible, this must be done from about thecentre of the last step as shown by the pitch-board, draw the line B A asshown. Bisect the angle, draw the joint-line to meet the bisecting-line,which is the centre the ramp is struck from. Fig. 5. Shows tho face mould for Fig. i, obtained in the same… … HAND-RAILING—continued. Fig. 1. Is the plan of centre line of rail for a well with six winders,as shown, two of them being in the springing at each side. Draw the tan-gent lines, the joint line C D, and the springing lines B C, C F, forming two Fig. 2. Is the stretch out or development of tho…
Carpentry · Joinery
