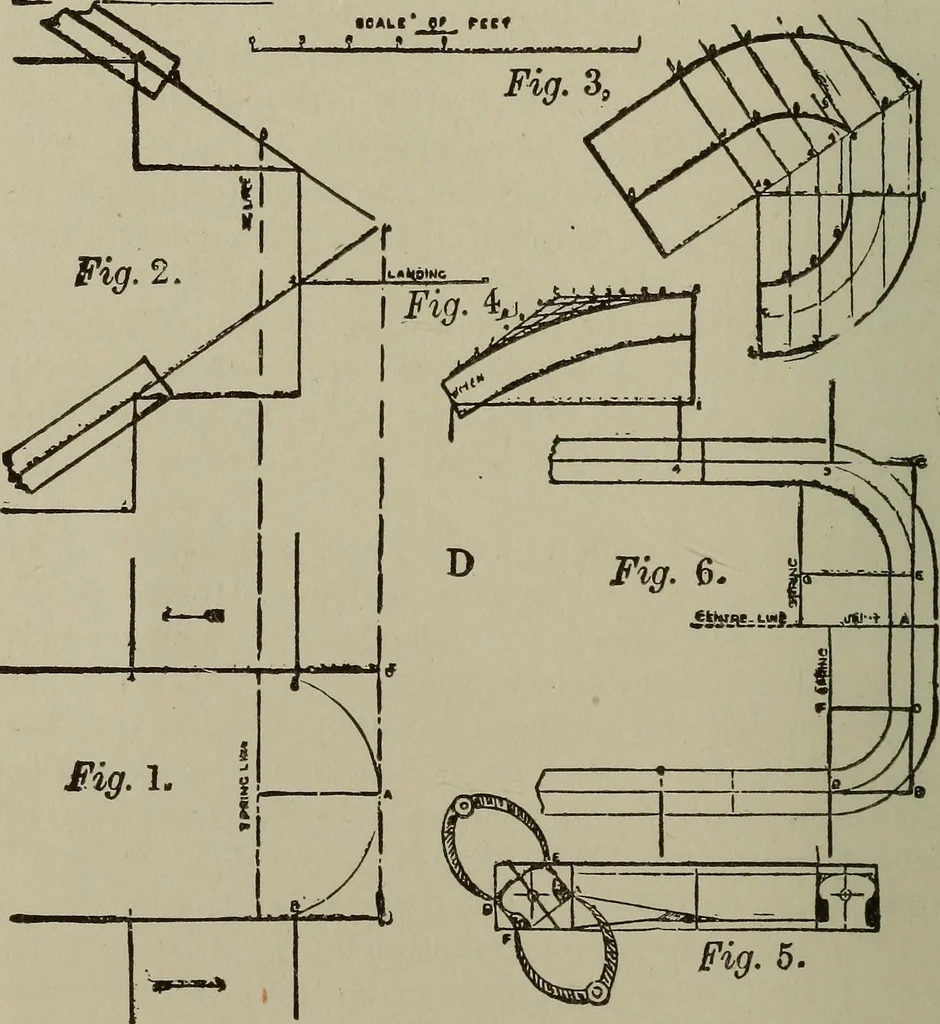

. This, of course, is intended for a straightstair having a small well hole and landing on a levelfloor. Problem,—^To obtain a wreath for half-space land-ing: When the distance between the centers of railsis equal to, or more than, the width of a step, and 52 COMMON-SENSE HANDRAILING the risers… … DIAGRAM D. HALF-SPACE RAILING well is a straight level line. Fig. I, diagram D,shows a large well with the risers 2 and 3 placed half astep from B and C; these four steps are shown insection at Fig. 2. Draw the center lines of rails I, SECOND METHOD 53 2, 3 and 4, and they will meet at A, which is…
