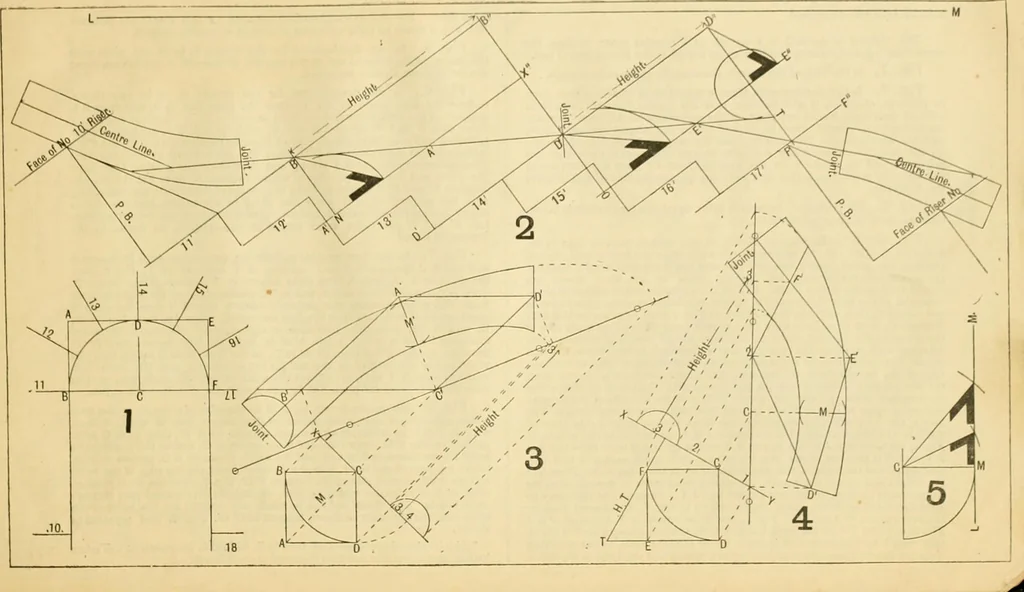

il.Then at Fig. 4, with C as a centre, draw an arc tangent to the line E D, thenwith C, Fig. 5, as a centre and the samo radius, draw tho arc cutting thoedge of tho board, as shown; draw from the intersection to C, and in theangle is tho bevel for that end of the wreath. Again at Fig. 4 with C as… … 148HAHDBAILIH 8—Continued. This chapter is devoted to a wrsath at b, quarter spaec landing, therisers, landing, and starting placed with no regard to the falling line of rail. Fig. 1. Is the plan of the wreath showing the risers and tangents. Fig. 2. Is the development, being a repetition of what…
